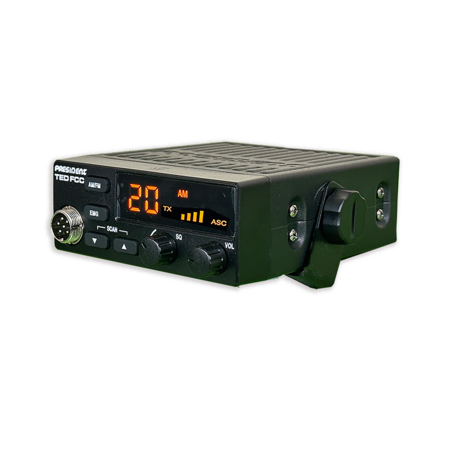

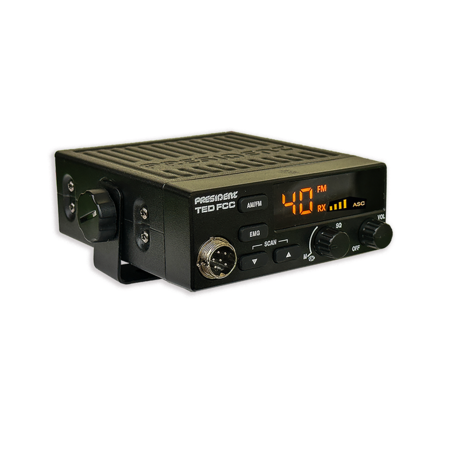

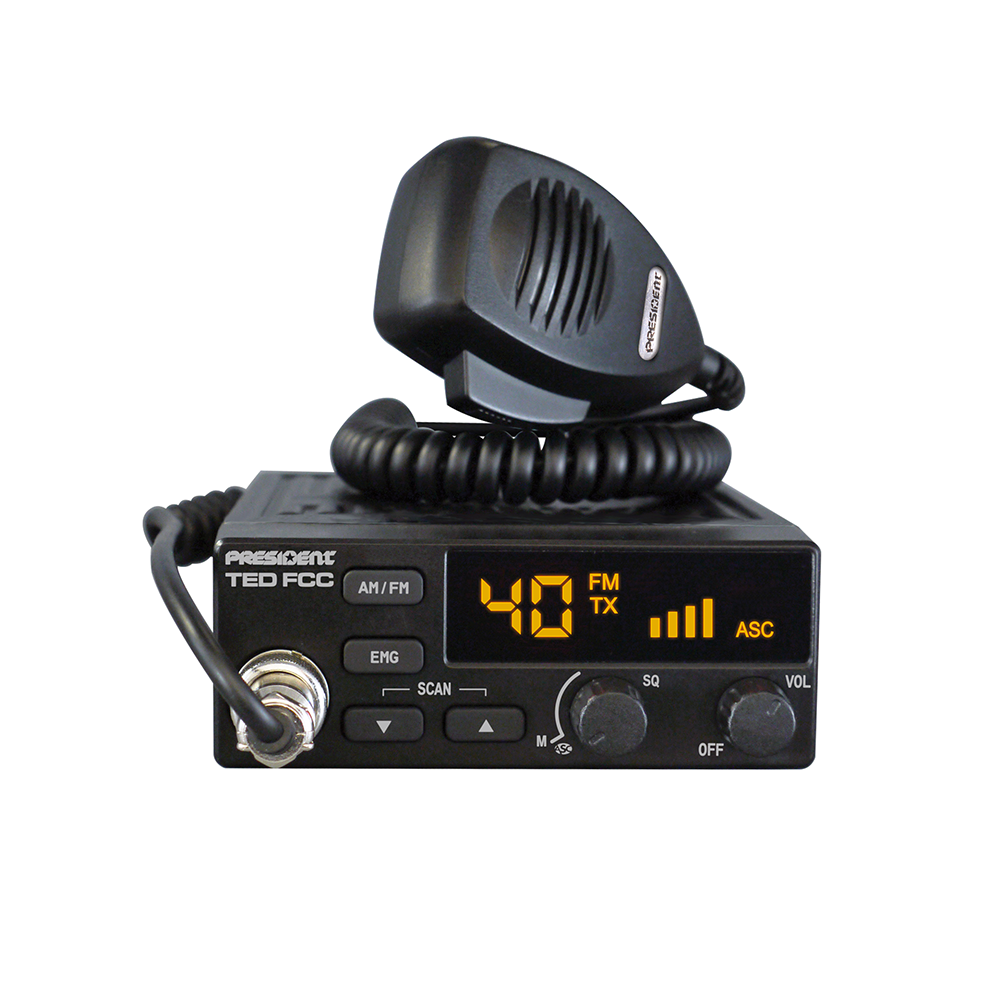

TED FCC
Ref.: TXUS004
- 40 channels AM / FM
- 12 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Scan
- Beep Function
- TOT (Time out timer)
- Front microphone plug
Minimum Advertised purchase price:
Special Price: US$US$0.00
Regular Price: 0.00 US$
![](https://president-electronics.us/assets/frontOffice/v1/template-assets/assets/img/logo/5ed6619.png)
![2+3 years warranty](https://president-electronics.us/assets/frontOffice/v1/template-assets/assets/img/logo/3abbbed.jpg)
![ASC](https://president-electronics.us/assets/frontOffice/v1/template-assets/assets/img/logo/4320aad.jpg)
![RoHS2](https://president-electronics.us/assets/frontOffice/v1/template-assets/assets/img/logo/3065be8.gif)
![FCC](https://president-electronics.us/assets/frontOffice/v1/template-assets/assets/img/logo/6687a31.gif)
![IC](https://president-electronics.us/assets/frontOffice/v1/template-assets/assets/img/logo/6090f6e.gif)
Supply | : | 13.8 V |
Number of channels | : | 40 |
AM | : | |
FM | : | |
Channel selector | : | up / down |
Volume | : | Volume adjustment and ON/OFF |
Squelch | : | Manual squelch |
ASC | : | |
S-meter | : | Digital |
Scan | : | |
Beep Function | : | |
Preset channel | : | 2 Emergency channels (9 & 19 AM) |
microphone plug | : | front (6 pins) |
Size (W x D x H) | : | 115 x 130 x 45 mm / 4,53 x 5,12 x 1,77 inch |
Weight | : | 0.560 kg / 1,24 lbs |
General
Number of channels | : | 40 |
Modulation modes | : | AM/FM |
Frequency ranges | : | de 26.965 MHz à 27.405 MHz |
Antenna impedance | : | 50 ohms |
Power supply | : | 13.8 V |
Size (W x D x H) | : | 115 x 130 x 45 mm / 4,53 x 5,12 x 1,77 inch |
Weight | : | 0.560 kg / 1,24 lbs |

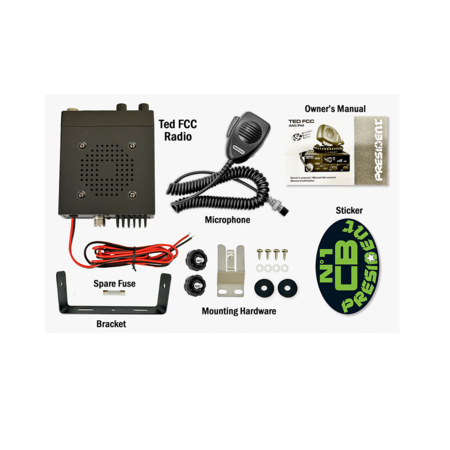

Accessories supplied | : | power cord with fuse, 1 microphone and its hanger, 1 mounting bracket with fixing screws |
Transmission
Frequency allowance | : | ± 300 Hz |
Carrier power | : | 4 W |
Transmission interference | : | < 4 nW (- 54 dBm) |
Audio response | : | 300 Hz to 3 KHz |
Emitted power in the adj. channel | : | < 20 μW |
Microphone sensitivity | : | 3.0 mV |
Drain | : | < 2 A (13.8 V) |
Modulated signal distortion | : | 2 % |
Reception
Maxi. sensitivity at 20 dB sinad | : | 0.5 μV - 113 dBm (AM) / 0.35 μV - 116 dBm (FM) |
Frequency response | : | 300 Hz to 3 kHz |
Adjacent channel selectivity | : | 60 dB |
Maximum audio power | : | 3 W |
Squelch sensitivity | : | min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
Frequency image rejection rate | : | 60 dB |
Intermediate frequency rej. rate | : | 70 dB |
Drain | : | 180 ~ 500 mA max. (13.8 V) |
Antennas recommended for this transceiver
ExcellentVery GoodCorrectNot Recommended
Primary rule for best antenna performance: "The longer the antenna, the better the performance." Please consult your dealer for advice.
