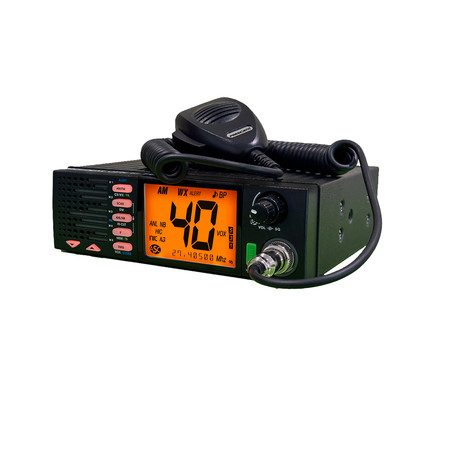

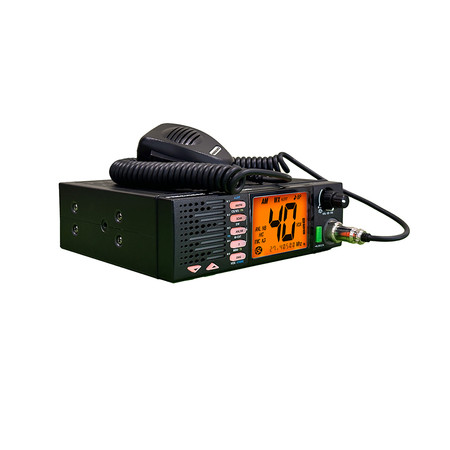

JFK III FCC AM/FM
The JFK III FCC AM/FM CB radio has all the bells and whistles for the modern trucker!
Our first OEM Truck Size AM/FM CB radio is sure to please all CB users with its unique flashing front-firing speaker signaling RX /TX, a vibrant large 7-color LCD, and a new microphone featuring up/down activation and deactivation.
Aside from being the coolest looking radio on the market, President's ever-present functionality is clear with features like a Type A USB Port, Automatic SWR, Noise Reduction Circuit, two programmable Emergency Channels -- just to name a few. Don't sleep on this one!
Warranty: President radios are backed with a 2-year warranty. When purchased with an external President antenna, the radio warranty increases to 5 years under our 2+3 program.
What’s in the box: Transceiver, UP/DOWN electret microphone, microphone hanger clip, fused power cord, mounting bracket kit and user manual.

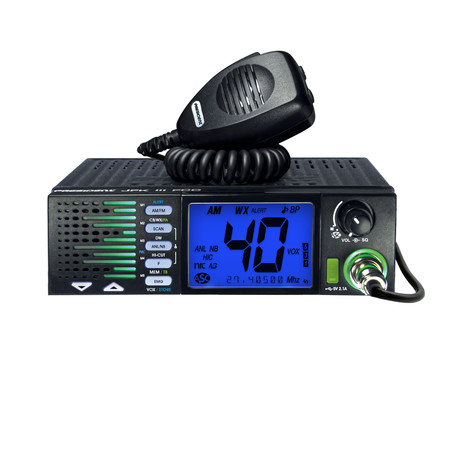

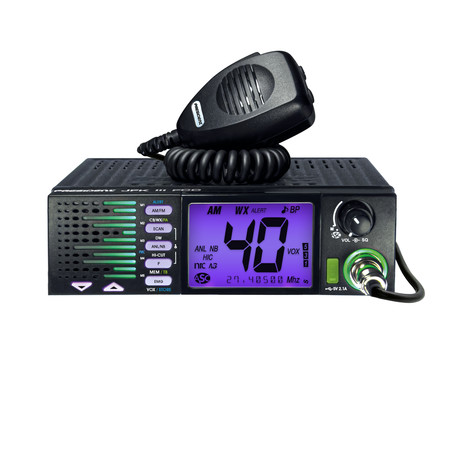

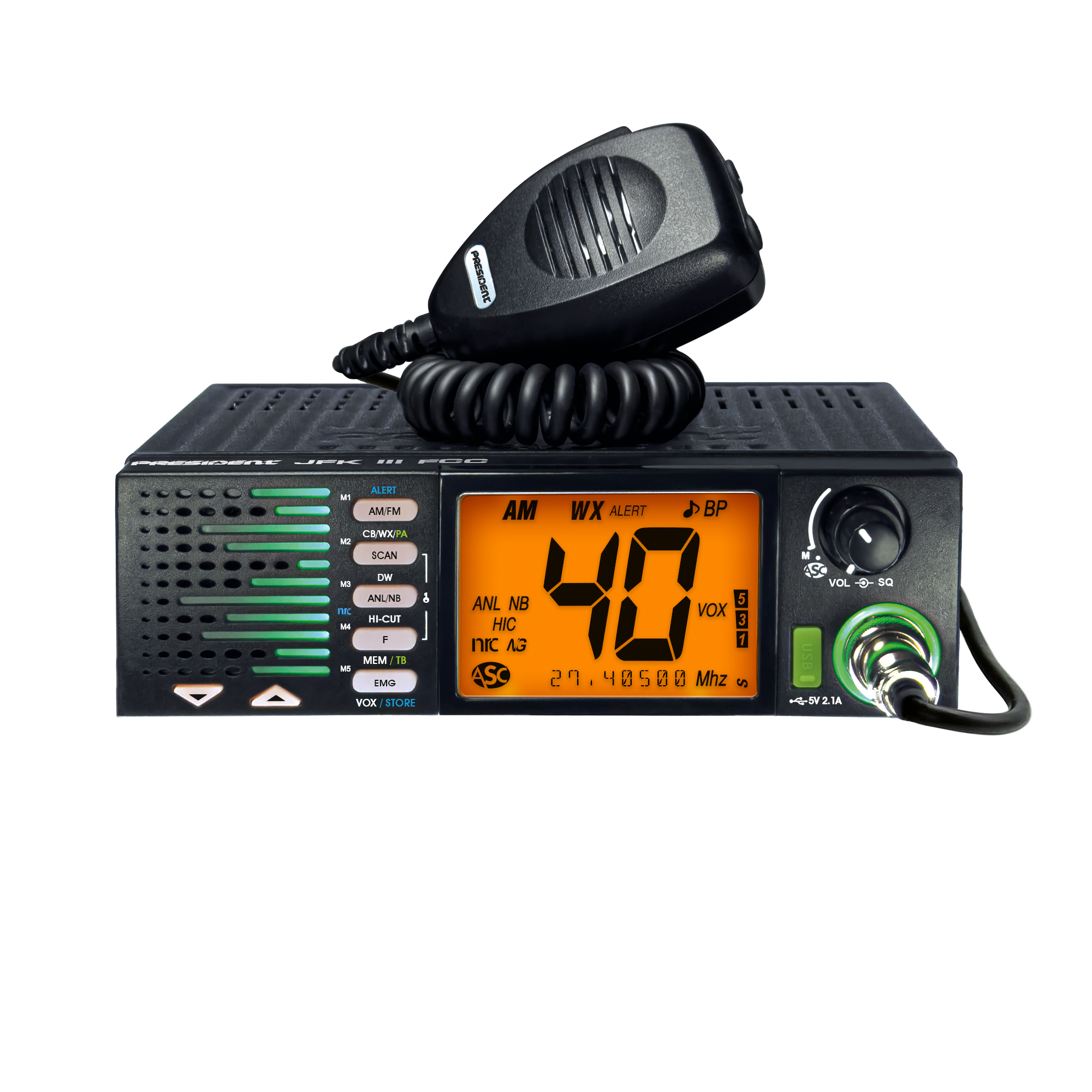

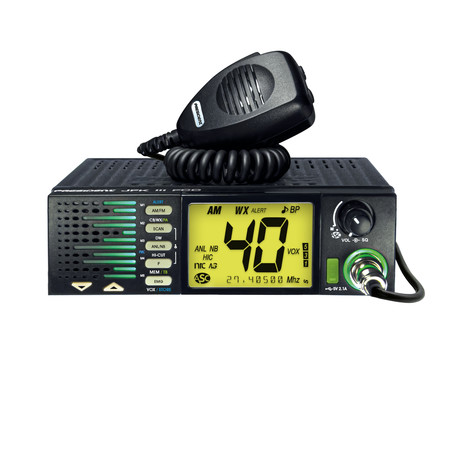

Backlight colors:
|
|
|
|
|
|
|
|
|
|
Features
| : Size | 7.28" (W) x 6.89" (D) x 2.24" (H) |
| : OEM Truck Size | |
| : Weight | 2.43 lbs |
| : Antenna socket | SO-239 |
| : Antenna impedance | 50 ohms |
| : Frequency ranges | from 26.965 MHz to 27.405 MHz |
| : Power supply (Input Voltage) | 13.2 V |
| : Microphone Up/Down | Activate / Deactivate |
| : Microphone plug | front (6 pins) |
| : Compatible microphone type | Electret , Dynamic |
| : External Vox microphone jack | |
| : Front loudspeaker | |
| : External loudspeaker jack | |
| : Public address | |
| : External HP PA socket | |
| : USB socket (front) | 5 V / 2,1 A |
| : Display | LCD multifunction |
| : Dimmer | |
| : Channel display | |
| : Frequencies display | |
| : S-meter | Digital |
| : Modulation modes | AM / FM |
| : Volume adjustment and ON/OFF | |
| : Squelch | Manual squelch |
| : Automatic Squelch Control (ASC) | |
| : Channel selector | Up / down |
| : Mode switch | |
| : F / Menu function key | |
| : Key Beep | , Switchable |
| : Roger beep | , Switchable , 6 tones , Customizable |
| : Key locking | |
| : Memory | 5 |
| : Channel Shortcuts | emergency channel (EMG) programmable |
| : Dual watch | |
| : Channel Scan | |
| : Scan Skip | |
| : Talkback | |
| : Hands Free (Vox) | |
| : Automatic SWR meter | |
| : SWR Meter | |
| : TOT | |
| : Filter ANL | |
| : Filter NB | |
| : Filter HI-CUT | |
| : NRC | |
| : Noise Gate | |
| : Weather channels | from 162.400 MHz to 162.550 MHz |
| : Weather/Alert |
| :Frequency allowance | ± 200 Hz |
| :Carrier power | 4W AM/FM |
| :Transmission interference | < 4 nW (-54 dBm) |
| :Audio response | 300 Hz to 3 kHz |
| :Emitted power in the adj. channel | < 20 μW |
| :Microphone sensitivity | 3 mV |
| :Drain | < than 2.5 Amp |
| :Modulated signal distortion | 2% |
| :Max. sensitivity at 20 dB sinad | AM: 0.5 μV - 113 dBm / FM: 0.3 μV - 116 dBm |
| :Frequency response | 300 Hz to 3 kHz |
| :Adjacent channel selectivity | 60 dB |
| :Maximum audio power | 3 W |
| :Squelch sensitivity | min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
| :Frequency image rejection rate | 60 dB |
| :Intermediate frequency rej. rate | 70 dB |
| :Drain | 300 ~ 600 mA max. |
