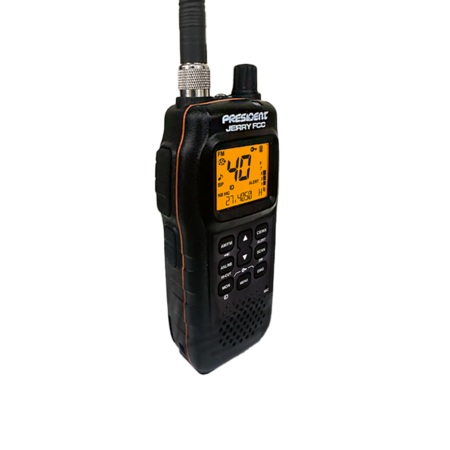

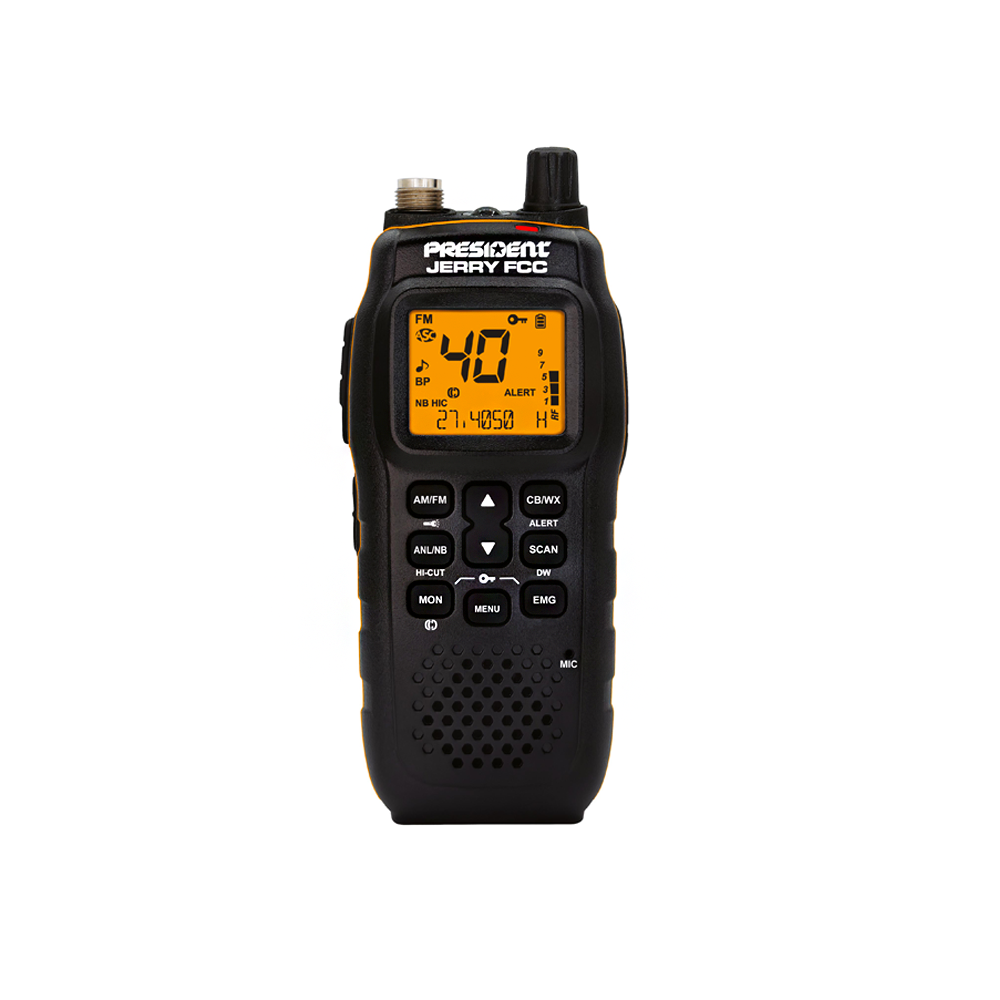

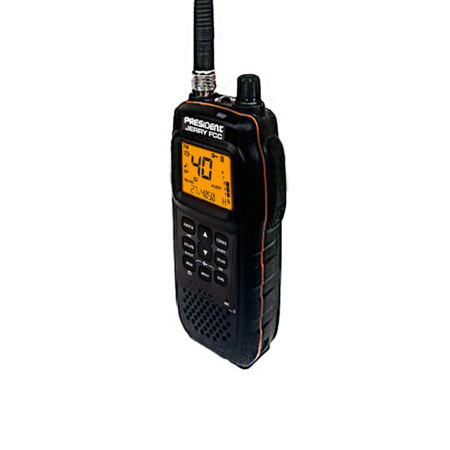

JERRY FCC

Send to a Friend

Ref.: TXUS623

- 40 channels AM / FM
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- ANL, NB, HI-CUT filters
- Scan
- F function key
- Beep Function
- Roger Beep
- Weather channel with Alert
- Dual watch
- Monitor
- Key locking
- Emergency channel (EMG 1 & 2)
- Eco mode
- External microphone plug
- External loudspeaker jack
- Flashlight
- Battery : Lithium-Ion

Minimum Advertised purchase price:

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Supply	:	7.4 V (Handheld configuration) / 13.2 V (Mobile configuration)
Number of channels	:	40
AM	:
FM	:
Channel selector	:	up / down
Number of weather channels	:	7
Weather alert	:
Volume	:	Volume adjustment and ON/OFF
RF Power	:
Squelch	:	Manual squelch
ASC	:
Display	:	LCD multifunction
Frequencies display	:
S-meter	:	Digital
Filter ANL	:
Filter NB	:
Filter HI-CUT	:
Scan	:
F / Menu function key	:
Beep Function	:
Roger beep	:
Dual watch	:
Key locking	:
Preset channel	:	EMG
External Vox microphone jack	:
External loudspeaker jack	:
Size (W x D x H)	:	152 (H) x 66,5 (L) x 37 (P) mm 5.98 (H) x 2.62 (L) x 1.46 (P) inches
Weight	:	305 g / 0.67 lb with battery pack

General

Number of channels	:	40
Number of weather channels	:	7
Weather alert	:
Modulation modes	:	AM / FM
Frequency ranges	:	from 26.965 MHz to 27.405 MHz
Weather channels	:	from 162.400 MHz to 162.550 MHz
Antenna impedance	:	50 ohms
Power supply	:	7.4 V (Handheld configuration) / 13.2 V (Mobile configuration)
Size (W x D x H)	:	152 (H) x 66,5 (L) x 37 (P) mm 5.98 (H) x 2.62 (L) x 1.46 (P) inches
Weight	:	305 g / 0.67 lb with battery pack

Transmission

Frequency allowance	:	+/- 200Hz
Carrier power	:	4 W AM / 4 W FM
Transmission interference	:	inferior to 4 nW (- 54 dBm)
Audio response	:	300 Hz to 2,5 kHz
Emitted power in the adj. channel	:	inferior to 20 μW
Microphone sensitivity	:	6 mV
Drain	:	1,8 A (with modulation power Hi)
Modulated signal distortion	:	2 %

Reception

Maxi. sensitivity at 20 dB sinad	:	AM : 0,5 μV - 113 dBm FM: 0.3 μV - 116 dBm WX : 0,3 μV - 116 dBm
Frequency response	:	300 Hz to 2.5 kHz
Adjacent channel selectivity	:	60 dB
Maximum audio power	:	1 W
Squelch sensitivity	:	min. 0,2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate	:	60 dB
Intermediate frequency rej. rate	:	70 dB
Drain	:	Menu ECO
