HENRY FCC AM/FM 12V NEW

Ref.: TXUS166
Size : 4.53" (W) x 4.13" (D) x 1.77" (H) Power Supply : 12 V AM : FM : Channel Scan : Filter ANL : Filter NB :

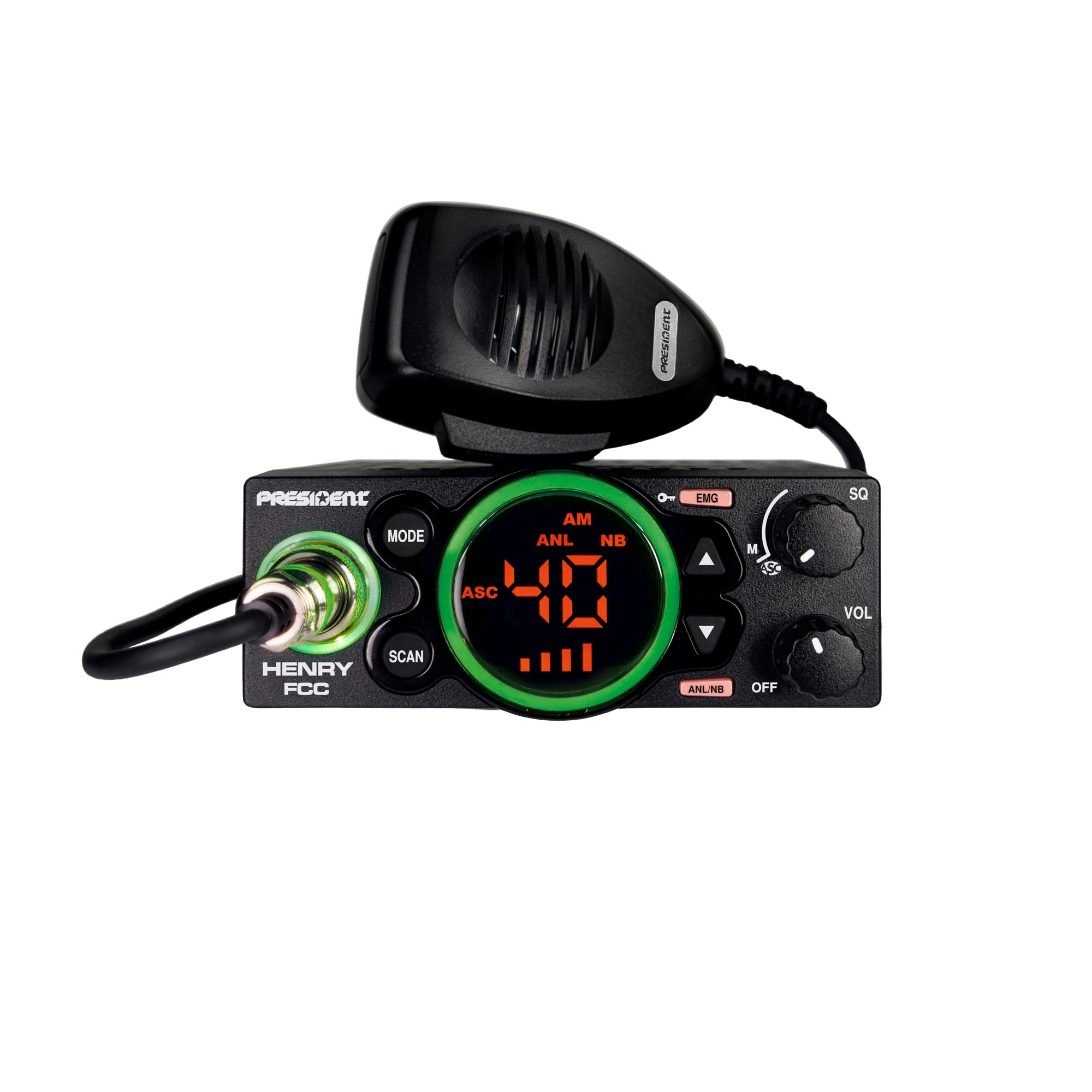

Meet Henry! Whether you're a trucker, pilot-car driver, or CB enthusiast, the Henry FCC lets you add your own style. With six interchangeable color rings included, you can easily customize your radio to match your vehicle, personality, or mood. Switch colors whenever you like and enjoy a compact design that fits where space is limited.

This AM/FM CB includes the most-used features including Automatic Squelch Control, Key Beep, Roger Beep, 2 Emergency Channels (EMG), Scan, ANL/NB, Accessory Volume, Lock, Microphone Up/Down Activate/Deactivate, BT Mike Compatibility, and much more.



Warranty: President radios are backed with a 2-year warranty. When purchased with an external President antenna, the radio warranty increases to 5 years under our 2+3 program.

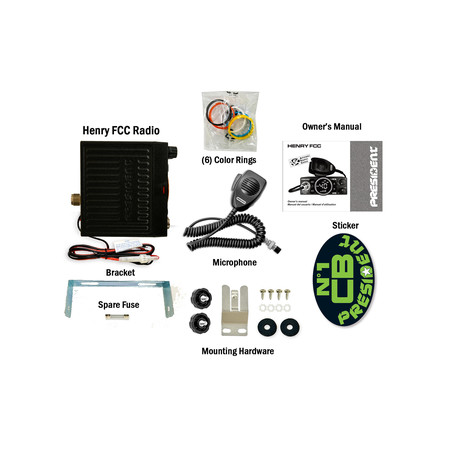

What's in the box: Transceiver, electret microphone with support, mounting cradle, screws, fused power cord, 6 color rings and manual.






Features

: Size   4.53" (W) x 4.13" (D) x 1.77" (H)
: Weight   .93 lbs
: Antenna socket   SO-239
: Antenna impedance   50 ohms
: Frequency ranges   from 26.965 MHz to 27.405 MHz
: Power supply (Input Voltage)   13.8 V
: Microphone Up/Down   Activate / Deactivate
: Microphone plug   front (6 pins)
: Compatible microphone type   Electret , Dynamic
: External loudspeaker jack
: Display   Digital
: Channel display
: S-meter   Digital
: Modulation modes   AM / FM
: Volume adjustment and ON/OFF
: Squelch   Manual squelch
: Automatic Squelch Control (ASC)
: Channel selector   Up / down
: Mode switch
: Key Beep   Switchable
: Roger beep   Switchable
: Key locking
: Channel Shortcuts   channel 9 & 19
: Channel Scan
: TOT
: Filter ANL
: Filter NB
:Frequency allowance  ± 200 Hz
:Carrier power  4W AM/FM
:Transmission interference  < 4 nW (-54 dBm)
:Audio response   300 Hz to 3 kHz
:Emitted power in the adj. channel  < 20 μW
:Microphone sensitivity  3 mV
:Drain  < than 2 Amp
:Modulated signal distortion  < 5%
:Max. sensitivity at 20 dB sinad  0.5 µV - 113 dBm (AM) / 0.35 µV - 116 dBm (FM)
:Frequency response  300 Hz to 3 kHz
:Adjacent channel selectivity  60 dB
:Maximum audio power  3 W
:Squelch sensitivity  min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate  60 dB
:Intermediate frequency rej. rate  70 dB
:Drain  200 ~ 500 mA max. (13.8V)

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Manual

Manual

HENRY User Manual
English / Español / Français
4.74 Mb
Document

Datasheet

HENRY Datasheet.pdf
English
1.87 Mb
Document

Declaration of conformity

HENRY FCC Cert Doc.pdf
English
119.60 Kb
Document

Declaration of conformity

HENRY IC Cert Doc.pdf
English / Français
225.46 Kb
