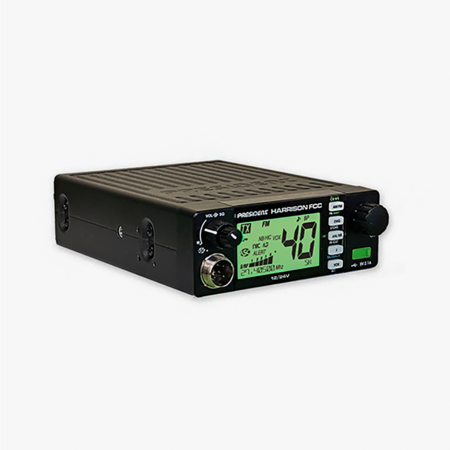

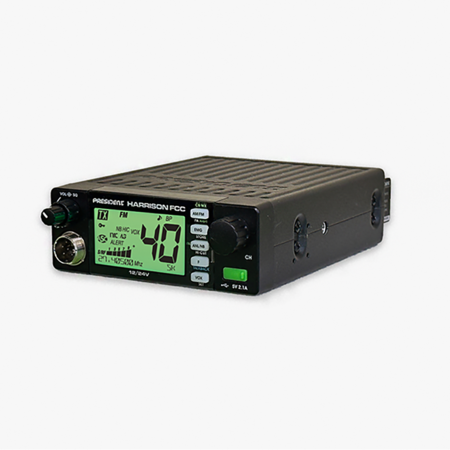

HARRISON FCC new

Ref.: TXUS768

- 40 channels AM / FM
- 12 / 24 V
- Channel rotary switch
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- Vox function (Hands free)
- ANL filter, NB and HI-CUT
- NRC
- Noise Gate
- CTCSS/DCS
- Scan
- Scan Skip
- Preset emergency (EMG 1/2)
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM
- Talkback
- Tone
- Micro Type (Electret / Dynamic)
- Public Address
- SWR Automatic
- Key locking
- Front microphone plug
- External loudspeaker jack
- USB 5V 2.1A

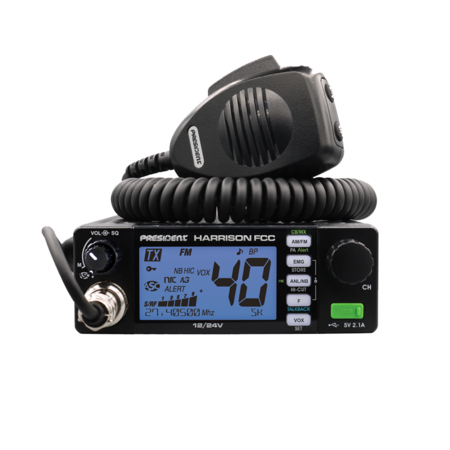

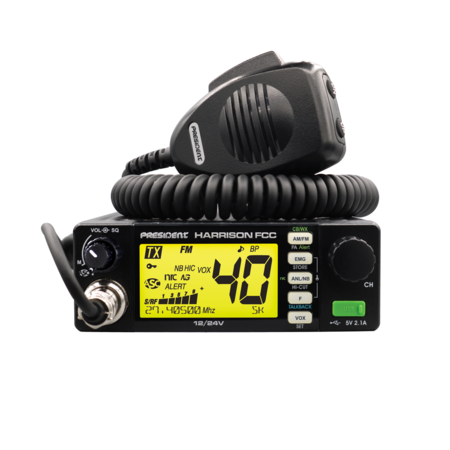

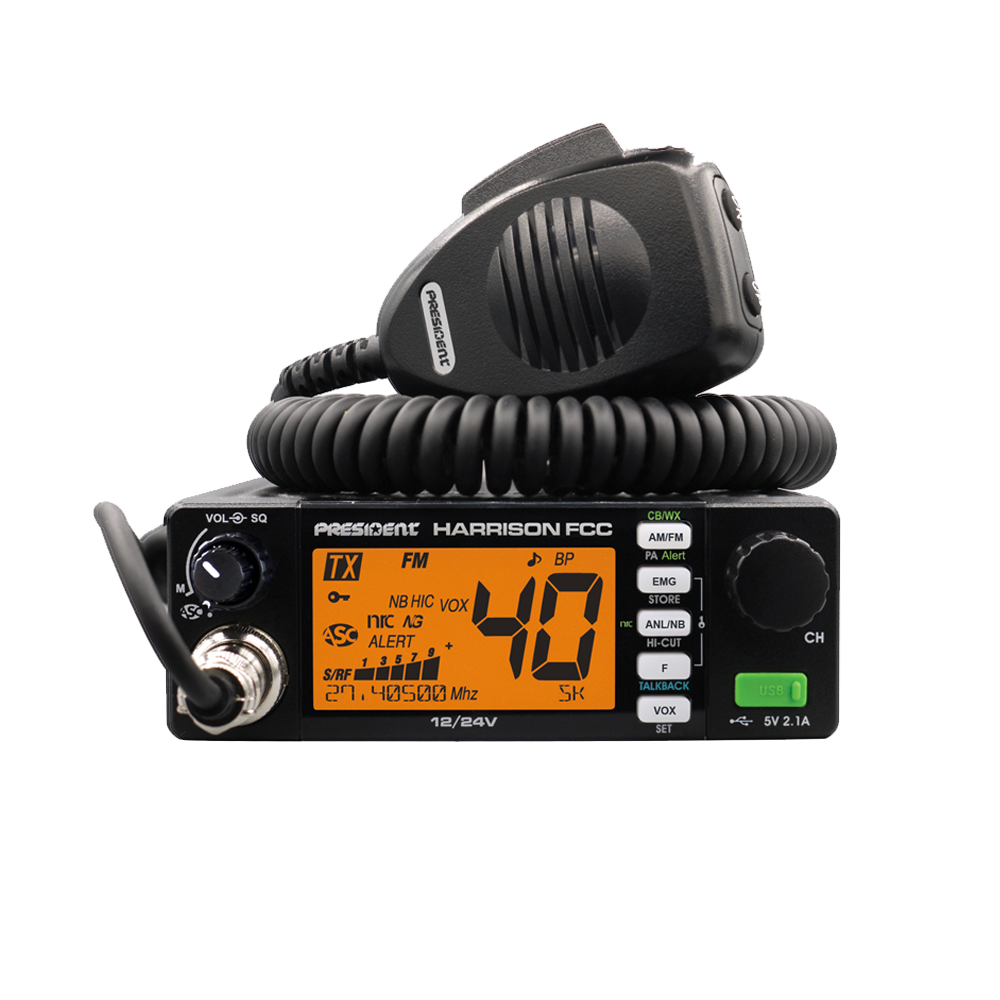

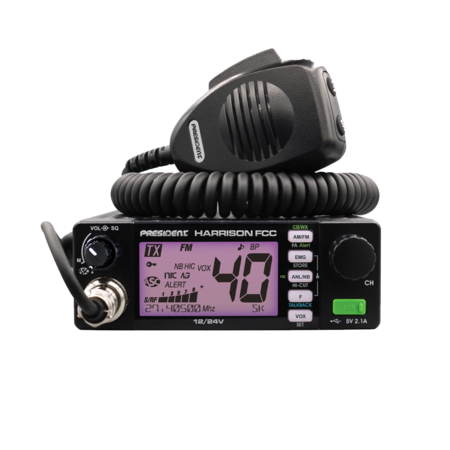

Backlight color:

Red Green Blue Cyan Yellow Magenta light blue

Minimum Advertised purchase price:
Special Price: US$US$0.00 Regular Price: 0.00 US$
 WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Supply: 13.8 V / 27.6 V
Number of channels: 40
AM:
FM:
Channel selector: rotary
Number of weather channels: 7
Weather alert:
Volume: Volume adjustment and ON/OFF
Squelch: Manual squelch
ASC:
Display: LCD multifunction
Frequencies display:
S-meter: Digital
Public address:
Talkback:
Vox:
Automatic SWR meter:
Tone:
Filter ANL:
Filter NB:
Filter HI-CUT:
Noise Gate:
Scan + Scan Skip:
Dimmer:
F / Menu function key:
Beep Function:
Roger beep:
Key locking:
SWR (Power Reading /SWR):
Preset channel: EMG (personalizable)
CTCSS:
DSC:
microphone plug: front (6 pins)
External Vox microphone jack:
External loudspeaker jack:
Size (W x D x H): 4.92 x 6.49 x 1.77 inches 125 x 165 x 45 mm
Weight: 1.65 lbs / 0.75 kg
General
Number of channels: 40
Number of weather channels: 7
Weather alert:
Modulation modes: AM / FM
Frequency ranges: from 26.965 MHz to 27.405 MHz
Weather channels: from 162.400 MHz to 162.550 MHz
Antenna impedance: 50 ohms
Power supply: 13.8 V / 27.6 V
Size (W x D x H): 4.92 x 6.49 x 1.77 inches 125 x 165 x 45 mm
Weight: 1.65 lbs / 0.75 kg

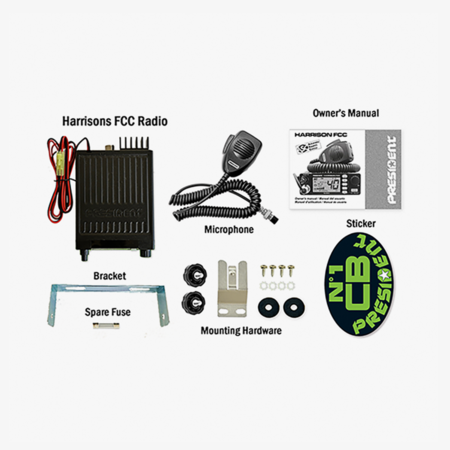

Accessories supplied: Ultra light electret microphone with support, mounting cradle, screws
Transmission
Frequency allowance: +/- 200Hz
Carrier power: 4 W AM / 4 W FM
Transmission interference: inferior to 4 nW (- 54 dBm)
Audio response: 300 Hz to 3 KHz in AM/FM
Emitted power in the adj. channel: inferior to 20 μW
Microphone sensitivity: 3.0 mV
Drain: < 2 A max. with modulation (13.8 V) < 1 A max. with modulation (27.6 V)
Modulated signal distortion: 2 %
Reception
Maxi. sensitivity at 20 dB sinad: 0.5 μV - 113 dBm (AM) 0.35 μV - 116 dBm (FM)
Frequency response: 300 Hz to 3 kHz in AM/FM
Adjacent channel selectivity: 60 dB
Maximum audio power: 3 W
Squelch sensitivity: min. 0,2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate: 60 dB
Intermediate frequency rej. rate: 70 dB
Drain: 180 ~ 800 mA maximum (13.6 V) 90 ~ 400 mA maximum (27.8 V)
CTCSS Tone List
Freq. (Hz)Freq. (Hz)Freq. (Hz)
00 - oFOFF13103.526162.2
167.014107.227167.9
271.915110.928173.8
374.416114.829179.9
477.017118.830186.2
579.718123.031192.8
682.519127.332203.5
785.420131.833210.7
888.521136.534218.1
991.522141.335225.7
1094.823146.236233.6
1197.424151.437241.8
12100.025156.738250.3
DCS Code List
DCS (Octal)DCS (Octal)DCS (Octal)DCS (Octal)
123271525331179466
225281555431580503
326291565532581506
431301625633182516
532311655733283523
636321725834384526
743331745934685532
847342056035186546
951352126135687565
1053362236236488606
1154372256336589612
1265382266437190624
1371392436541191627
1472402446641292631
1573412456741393632
1674422466842394654
17114432516943195662
18115442527043296664
19116452557144597703
20122462617244698712
21125472637345299723
221314826574454100731
231324926675455101732
241345027176462102734
251435127477464103743
261455230678465104754

Antennas recommended for this transceiver

ExcellentVery GoodCorrectNot Recommended

Primary rule for best antenna performance: "The longer the antenna, the better the performance." Please consult your dealer for advice.
