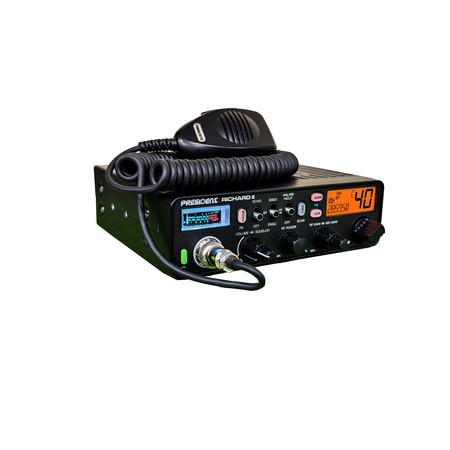

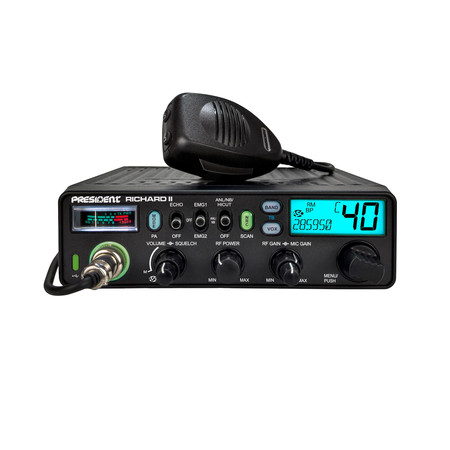

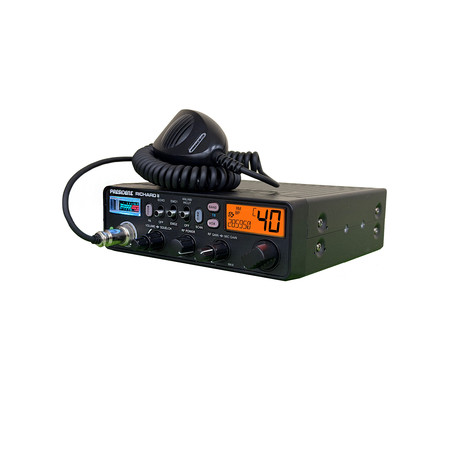

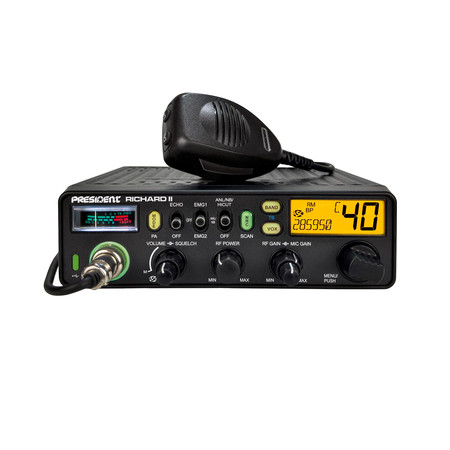

RICHARD II 10M
The Richard II adds premium features with Noise Reduction Circuit (NRC), Voltage Protection, SWR protection and more. The increased size of the front panel (OEM Truck Size) enhances ease of use for drivers while maintaining the popular classic style of the original version.
Warranty: President radios are backed with a 2-year warranty. When purchased with an external President antenna, the radio warranty increases to 5 years under our 2+3 program.

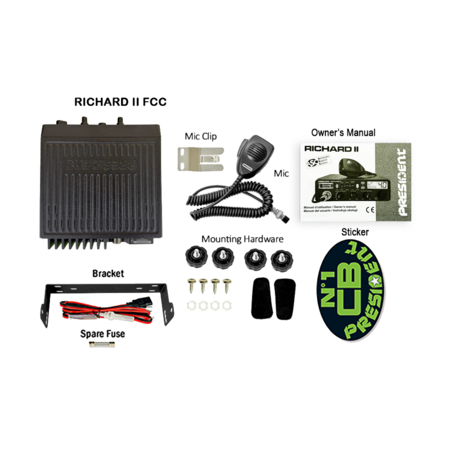

What's in the box: Transceiver, electret UP/DOWN microphone with support, support, mounting cradle, screws, fused power cord and manual.

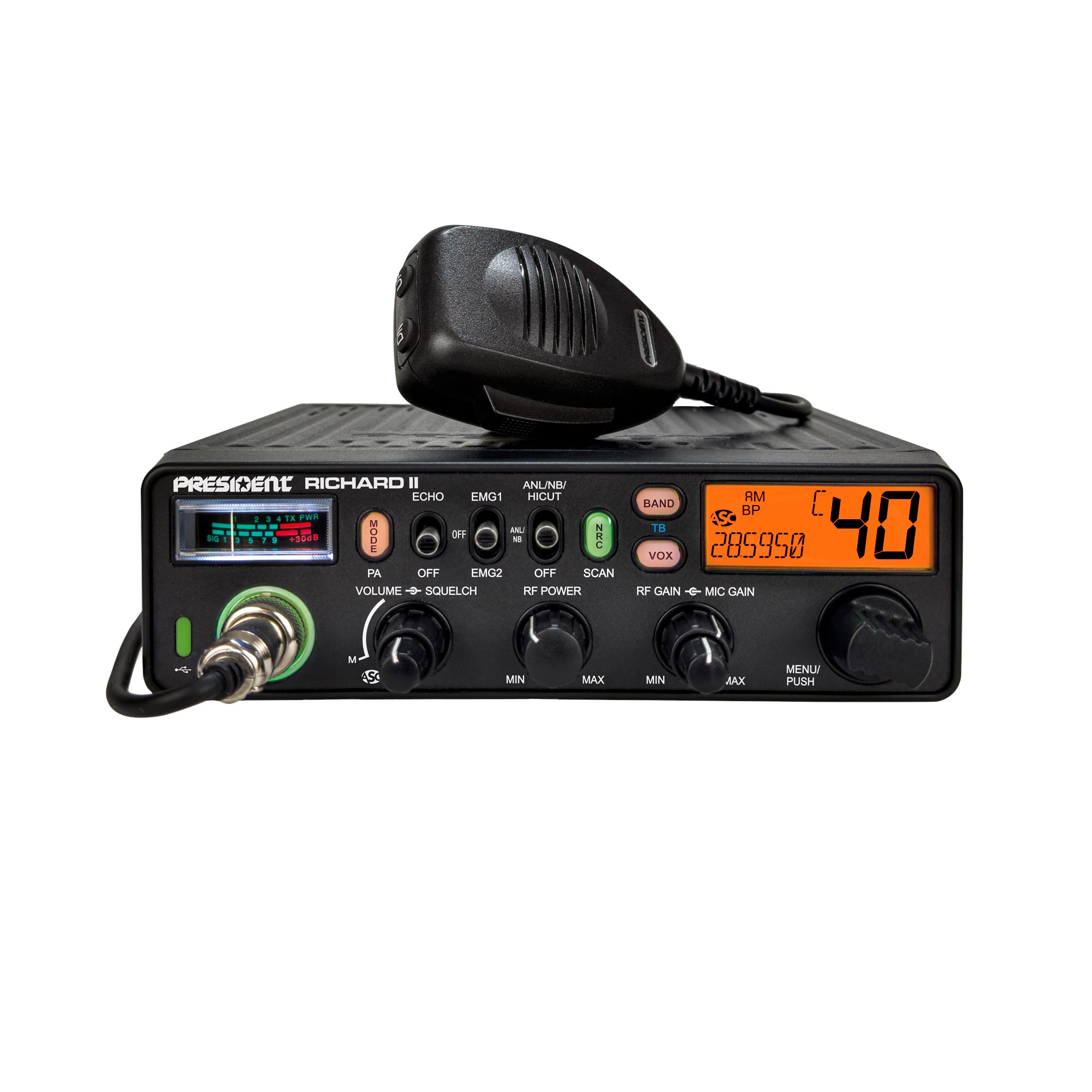

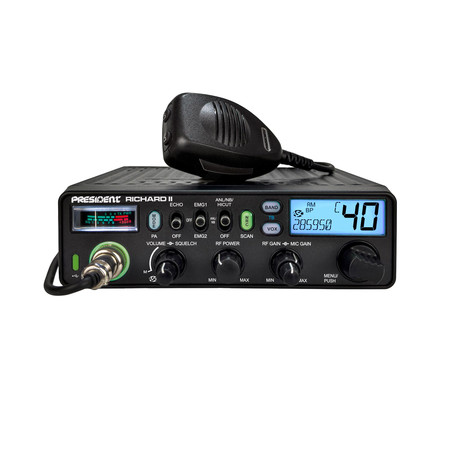

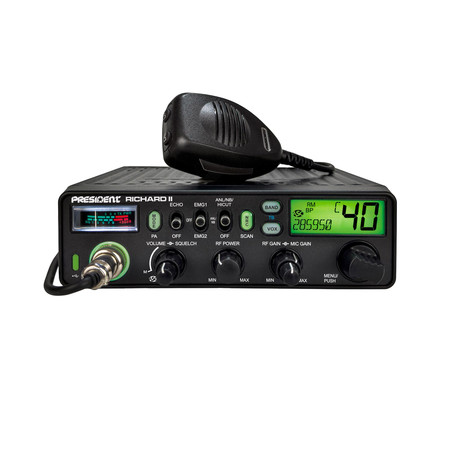

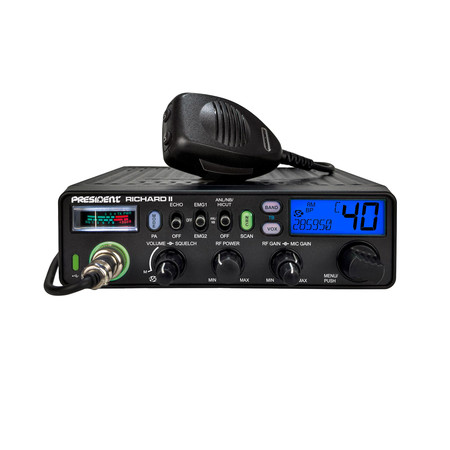

Backlight colors:
|
|
|
|
|
|
|
|
|
|
|
|
Features
| : Size | 7.283" (W) x 7.480" (D) x 2.165" (H) |
| : OEM Truck Size | |
| : Weight | 2.43 lbs |
| : Antenna socket | S-20 |
| : Antenna impedance | 50 ohms |
| : Frequency ranges | from 24.890 Mhz to 24.990 Mhz and from 28.000 Mhz to 29.700 Mhz (continuous scanning) |
| : Power supply (Input Voltage) | 13.8 V |
| : Microphone Up/Down | Activate / Deactivate |
| : Microphone plug | front (6 pins) |
| : Compatible microphone type | Electret , Dynamic |
| : External Vox microphone jack | |
| : External loudspeaker jack | |
| : Public address | |
| : External HP PA socket | |
| : USB socket (front) | 5 V / 2,1 A , USB-C |
| : Display | LCD multifunction |
| : Dimmer | |
| : Channel display | |
| : Frequencies display | |
| : VFO mode | |
| : S-meter | Vu-meter |
| : Modulation modes | AM / FM |
| : Volume adjustment and ON/OFF | |
| : Squelch | Manual squelch |
| : Automatic Squelch Control (ASC) | |
| : Channel selector | Rotary |
| : F / Menu function key | |
| : Key Beep | |
| : Roger beep | |
| : Tone | |
| : Channel Shortcuts | 2 , emergency channel (EMG) programmable |
| : Span | |
| : Channel Scan | |
| : Scan Skip | |
| : RF Power | |
| : RF Gain | |
| : Mic Gain | |
| : Talkback | |
| : Hands Free (Vox) | |
| : Automatic SWR meter | |
| : SWR Meter | |
| : SWR Protection | |
| : Voltage Protection | |
| : Echo | |
| : TOT | |
| : Filter ANL | |
| : Filter NB | |
| : Filter HI-CUT | |
| : NRC |
| :Frequency allowance | ± 300 Hz |
| :Carrier power | 13 W AM (~50 W PEP) / 40 W FM |
| :Power limitation | 4/10W |
| :Transmission interference | < -50 dBm |
| :Audio response | 300 Hz to 3 kHz |
| :Emitted power in the adj. channel | < 20 μW |
| :Microphone sensitivity | 3 mV |
| :Drain | 7 Amp |
| :Modulated signal distortion | 2% |
| :Max. sensitivity at 20 dB sinad | 0.7 μV - 110 dBm (AM) / 0.35 μV - 116 dBm (FM) |
| :Frequency response | 300 Hz to 3 kHz |
| :Adjacent channel selectivity | 60 dB |
| :Maximum audio power | 3 W |
| :Squelch sensitivity | min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
| :Frequency image rejection rate | 60 dB |
| :Intermediate frequency rej. rate | 70 dB |
| :Drain | 500 mA maximum |
