GEORGE FCC

Ref.: TXUS901
Size : 7.28" (W) x 6.77" (D) x 2.20" (H) Power Supply : 12 V AM : FM : SSB : P CHANNELS : Memory : 4 Channel Scan : Scan Skip : SWR Meter : SWR Protection : Voltage Protection : Filter ANL : Filter NB : Filter HI-CUT : NRC : Weather/Alert : CTCSS / DCS :


George is everything!  There's so much to say about this AM/FM & SSB radio.  It is a premium-rich, work horse radio with voltage protection, NRC (Noise Reduction Circuit) and CTCSS/DCS, just to name a few.



Warranty: President radios are backed with a 2-year warranty. When purchased with an external President antenna, the radio warranty increases to 5 years under our 2+3 program.

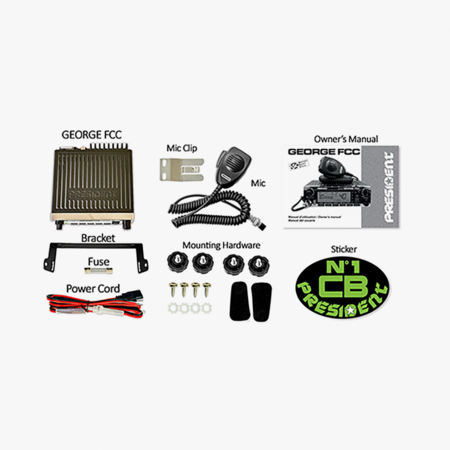

What's in the box: Transceiver, electret UP/DOWN microphone with support, mounting cradle, screws, fused power cord and manual.


  Need Help? Learn about Key Radio Features

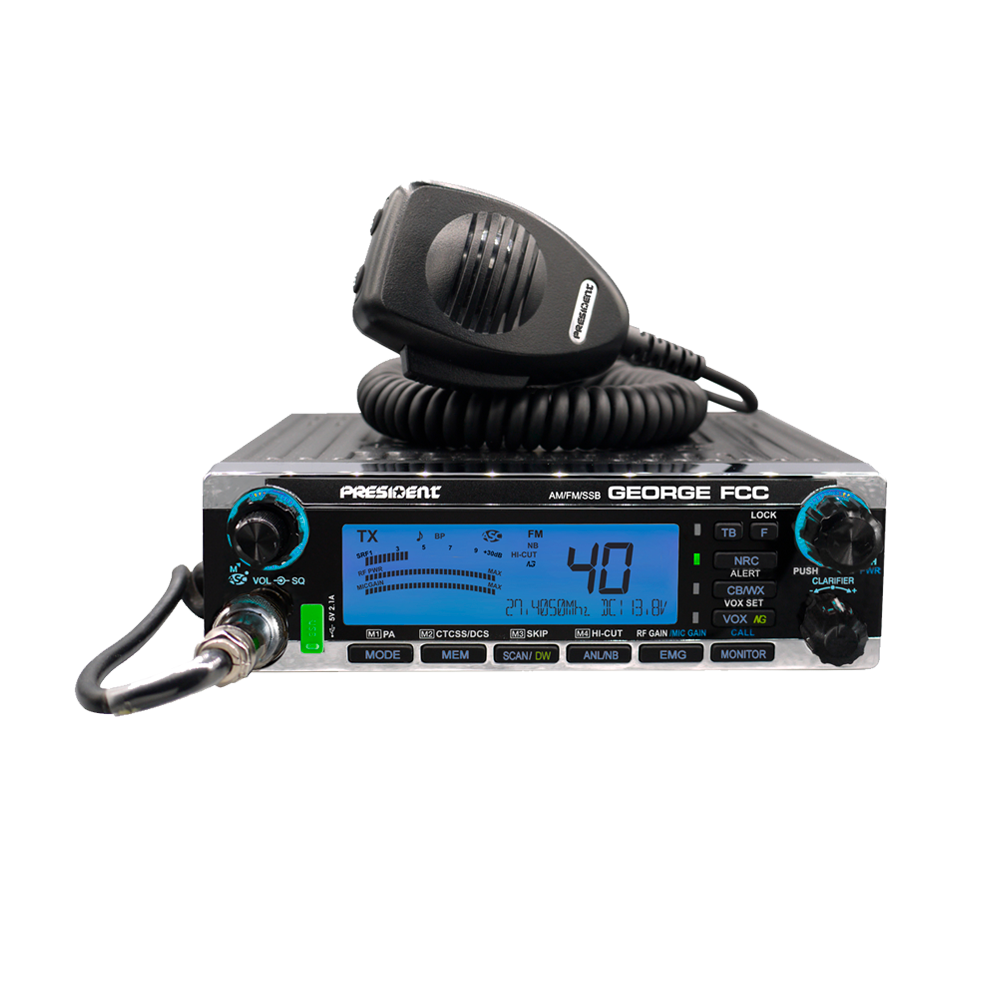

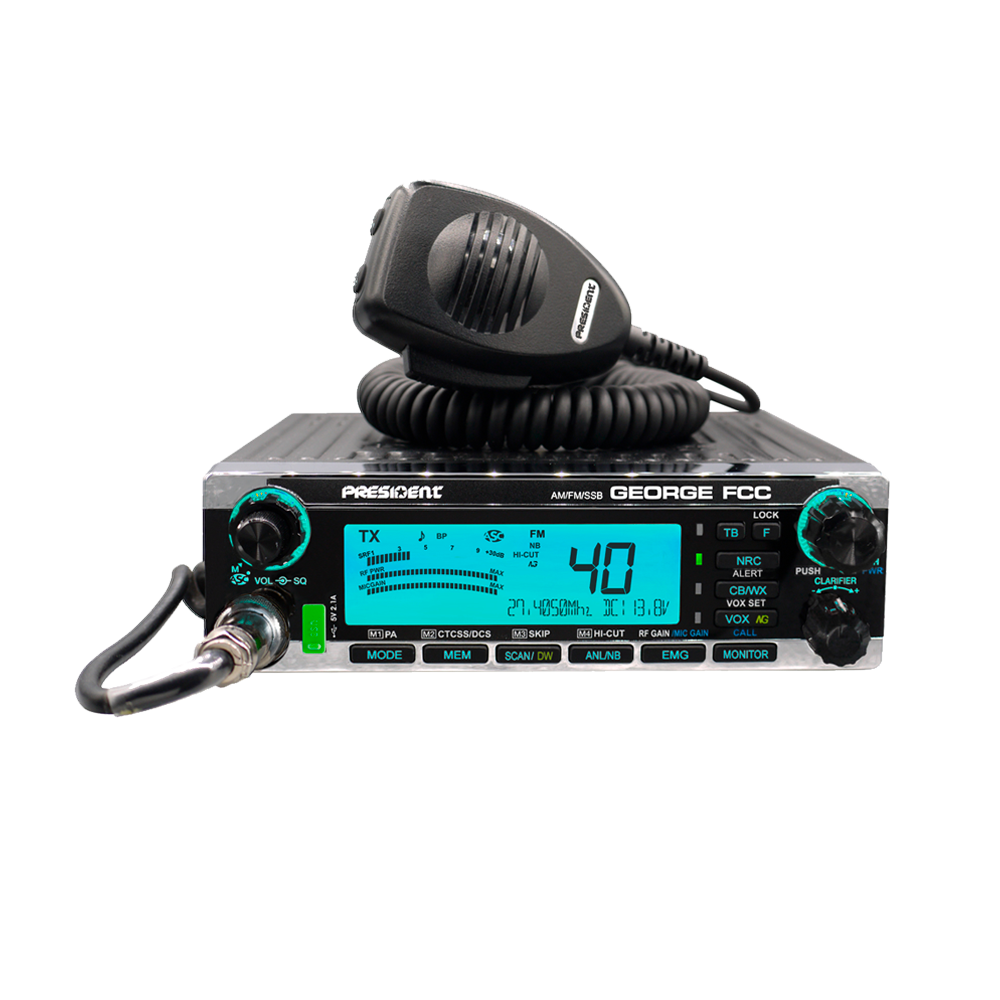

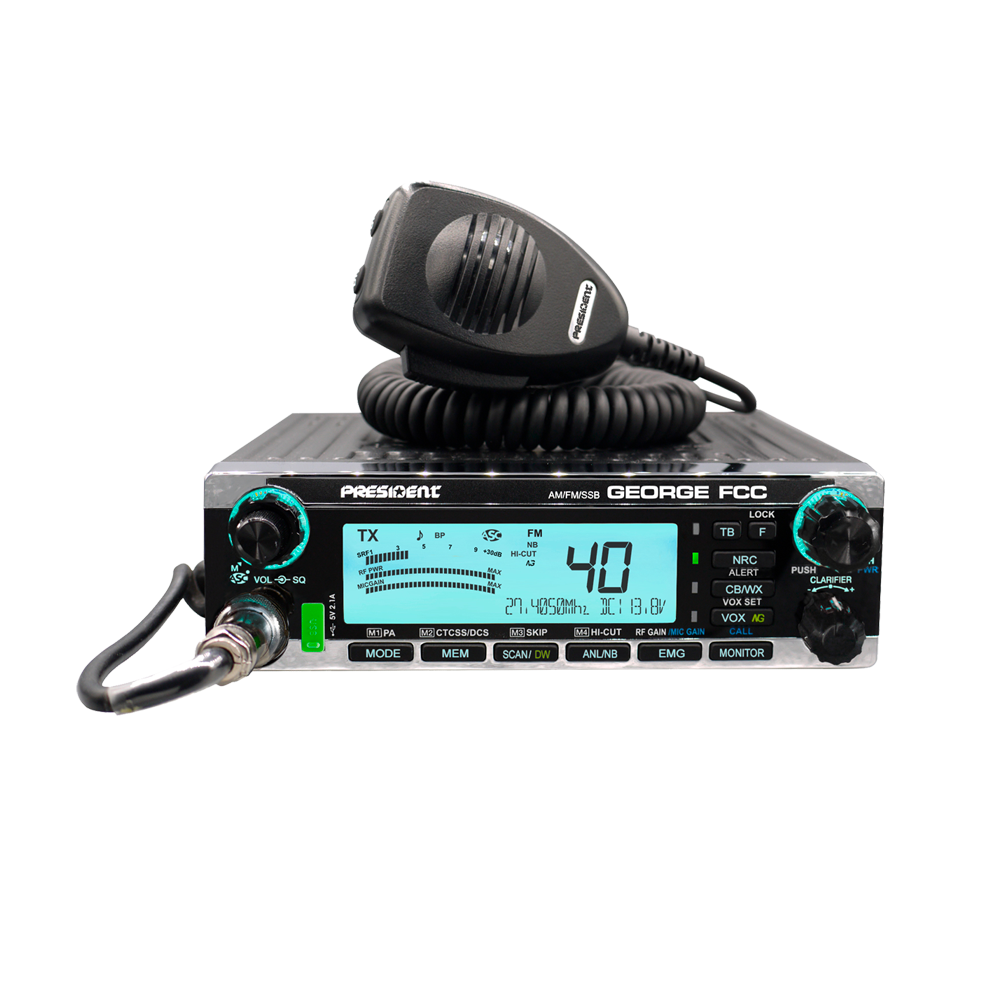

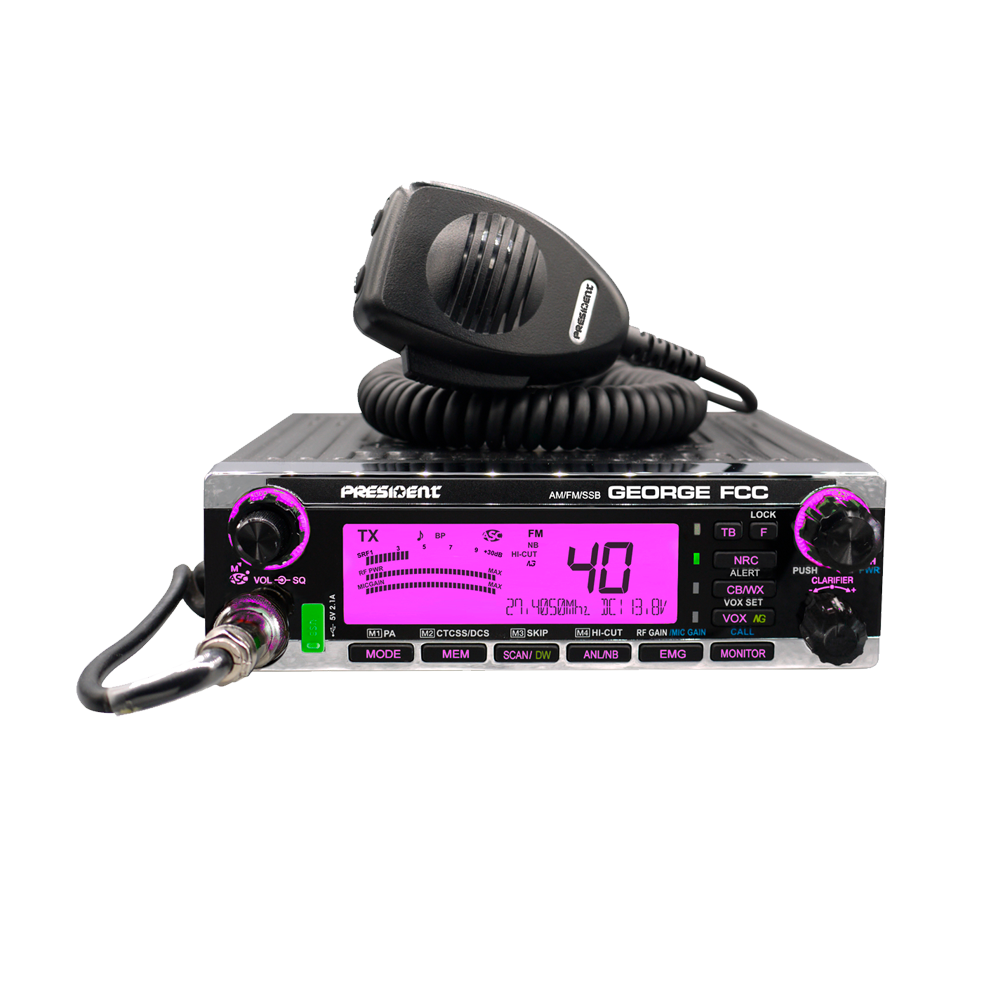

Backlight colors:

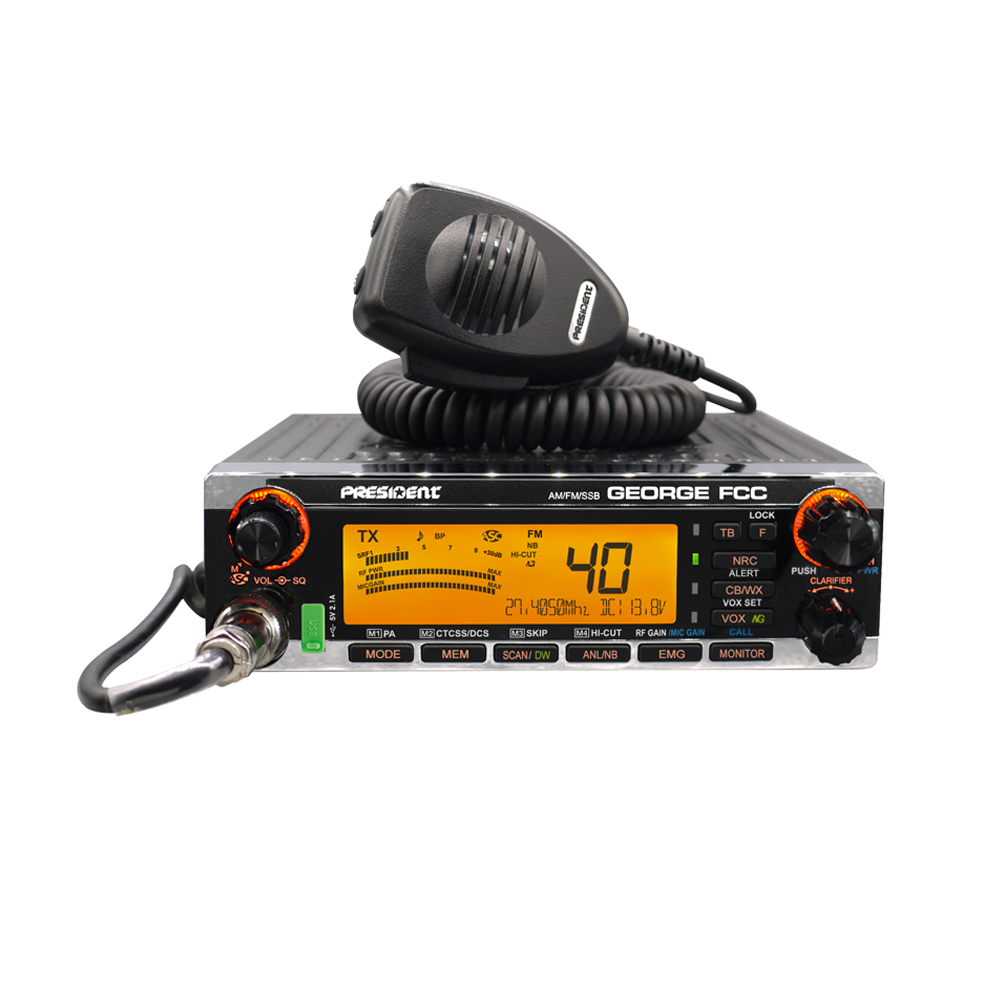

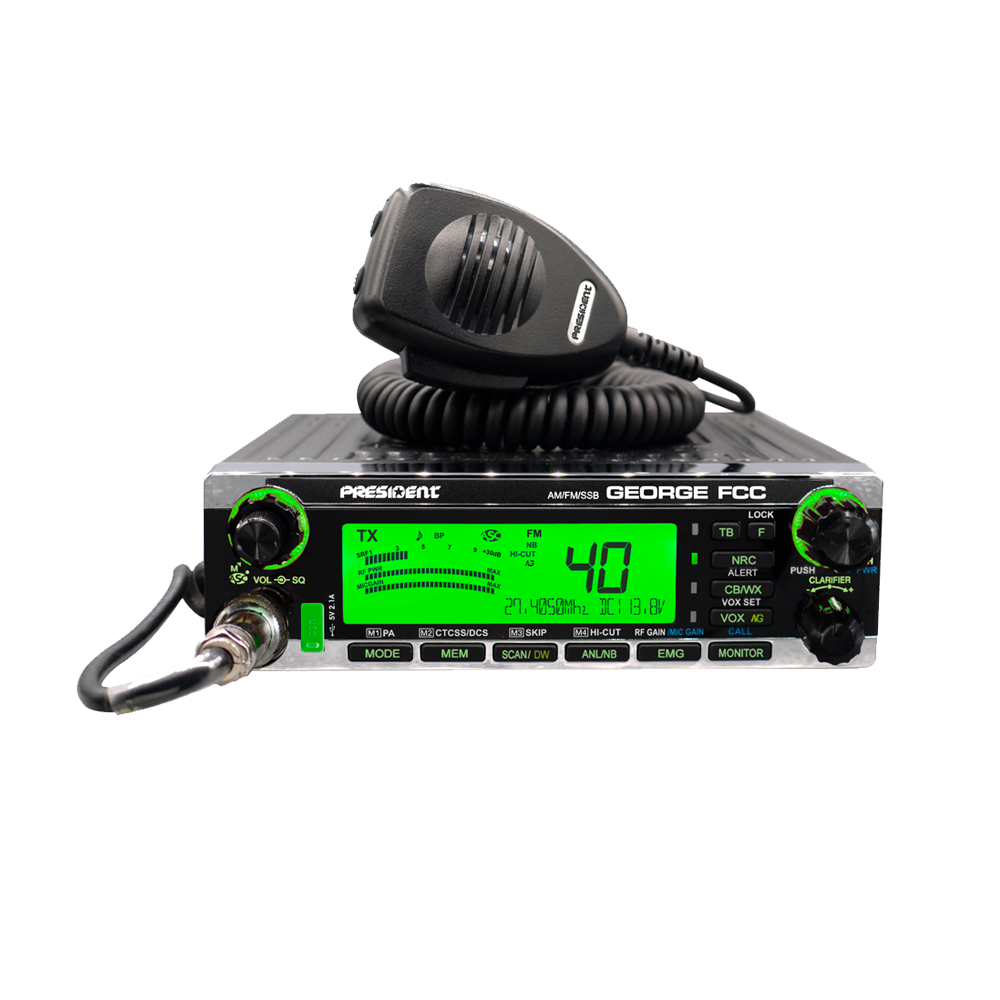

George Front Orange

Features

: Size   7.28" (W) x 6.77" (D) x 2.20" (H)
: Weight   2.204 lbs
: Antenna socket   SO-239
: Antenna impedance   50 ohms
: Frequency ranges   from 26.965 MHz to 27.405 MHz
: Power supply (Input Voltage)   13.8 V
: Microphone plug   front (6 pins)
: Compatible microphone type   Electret , Dynamic
: External Vox microphone jack
: External loudspeaker jack
: Public address
: External HP PA socket
: USB socket (front)   5 V / 2,1 A
: Display   LCD multifunction
: Dimmer
: Channel display
: Frequencies display
: S-meter   Digital
: Modulation modes   AM / FM / USB / LSB
: Volume adjustment and ON/OFF
: Squelch   Manual squelch
: Automatic Squelch Control (ASC)
: Channel selector   Rotary
: Mode switch
: P CHANNELS
: F / Menu function key
: Key Beep
: Roger beep
: Key locking
: Tone
: Memory   4
: Channel Shortcuts   2 , emergency channel (EMG) programmable
: Dual watch
: Channel Scan
: Scan Skip
: RF Power
: RF Gain
: Mic Gain
: Clarifier
: Talkback
: Hands Free (Vox)
: Automatic SWR meter
: SWR Meter
: SWR Protection
: Voltage Protection
: TOT
: Filter ANL
: Filter NB
: Filter HI-CUT
: NRC
: Noise Gate
: CTCSS   38 tones
: DCS   104 codes
: Monitor
: Weather channels   from 162.400 MHz to 162.550 MHz
: Weather/Alert
:Frequency allowance  ± 200 Hz
:Carrier power  4W AM/FM, 12W SSB
:Transmission interference  < 4 nW (-54 dBm)
:Audio response   300 Hz to 3 kHz
:Emitted power in the adj. channel  < 20 μW
:Microphone sensitivity  3 mV
:Drain  < than 5 Amp
:Modulated signal distortion  2%
:Max. sensitivity at 20 dB sinad  0.5 μV - 113 dBm (AM) / 0.35 μV - 116 dBm (FM) / 0.28 μV - 118 dBm (USB/LSB)
:Frequency response  300 Hz to 3 kHz
:Adjacent channel selectivity  60 dB
:Maximum audio power  3 W
:Squelch sensitivity  min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate  60 dB
:Intermediate frequency rej. rate  70 dB
:Drain  200~600 mA maximum (13.8 V)
N°Freq. (Hz) N°Freq. (Hz) N°Freq. (Hz)
00 - oFOFF 1197.4 22141.3
167.0 12100.0 23146.2
271.9 13103.5 24151.4
374.4 14107.2 25156.7
477.0 15110.9 26162.2
579.7 16114.8 27167.9
682.5 17118.8 28173.8
785.4 18123.0 29179.9
888.5 19127.3 30
991.5 20131.8
1094.8 21136.5
N°DCS (Octal) N°DCS (Octal) N°DCS (Octal) N°DCS (Octal)
123 1265 23132 34205
225 1371 24134 35212
326 1472 25143 36223
431 1573 26145 37225
532 1674 27152 38226
636 17114 28155 39243
743 18115 29156 40244
847 19116 30162
951 20122 31165
1053 21125 32172
1154 22131 33174
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Manual

Manual

George User Manual
English / Español / Français
4.91 Mb
version V1.04
Open
Document

Datasheet

George FCC Datasheet
English
1,001.34 Kb
Open
Document

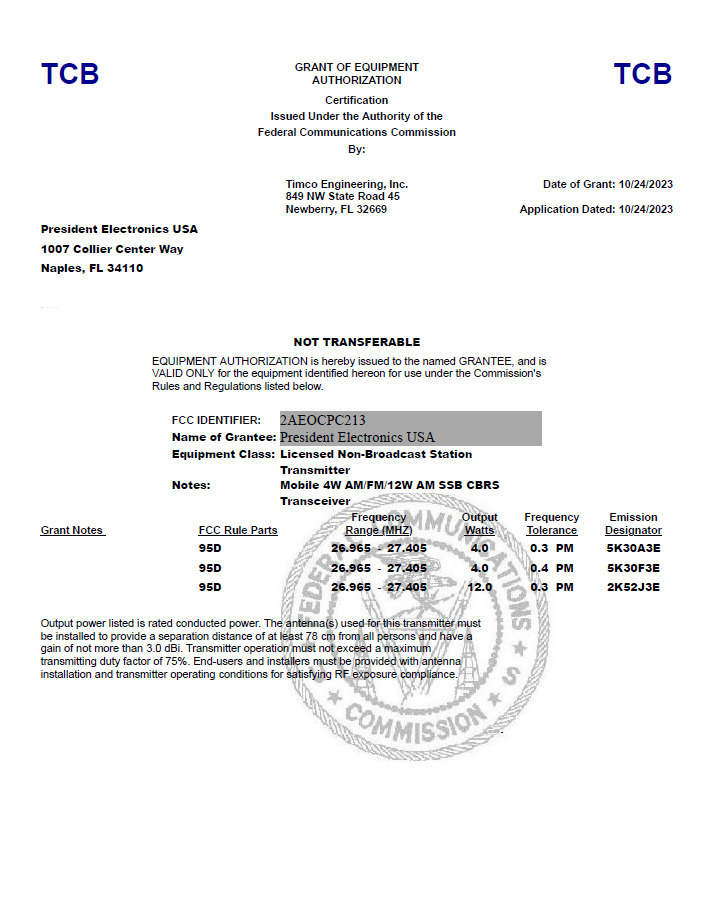

Declaration of conformity

George FCC Grant Doc
English
230.15 Kb
Open
Document

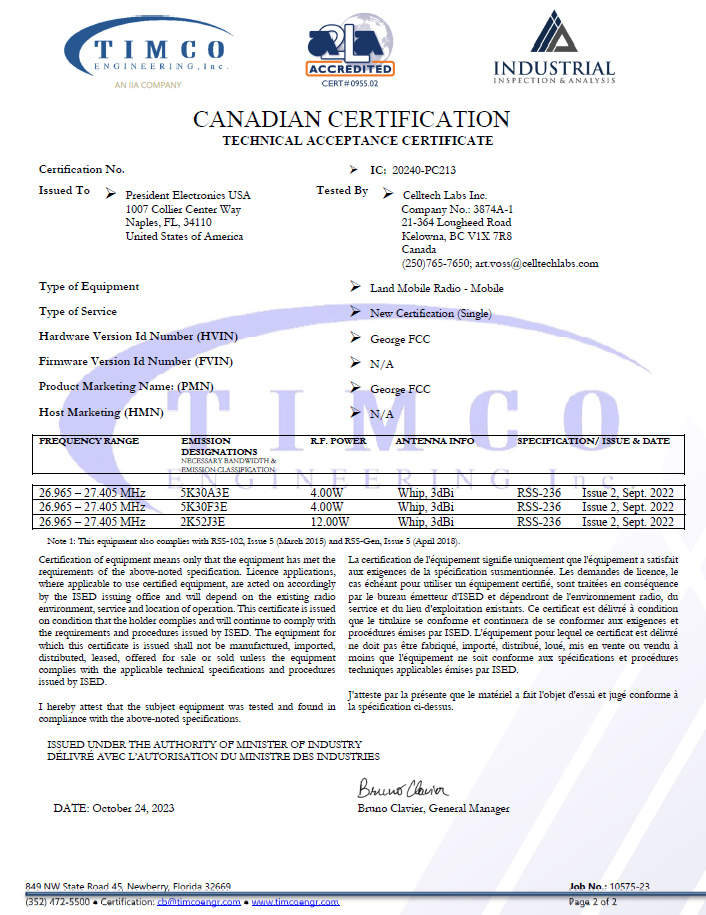

Declaration of conformity

George IC Cert Doc
English / Français
432.82 Kb
Open
1/9

By Scott V.

First purchase - went perfectly and without a hitch

...I had a little bit of experience with CB radios in my youth (enough years back that I don't want to try to remember), and I was able to get this installed in my Colorado without any issues. Tuned it, everything. Absolutely fantastic.

2/9

By JT

Worth the cost to upgrade!

This was bought to replace the Cobra CB that came in the truck. Hook up was easy and getting it dialed was as well. Seems to work a heck of a lot better than the Cobra...

3/9

By MJS

My President George FCC as my base station

Right out of the box one of the best 40 channel radios. I have mine set up at the house as a base station... Looking to up grade for a great little affordable radio I recommend this President George FCC. Share your love with giving me heart if this review my have inspired you. Thx for your time. Get this radio and have fun with it no matter how you use it.

4/9

By John

George FCC

Radio was easy to setup and use. Made several contacts on SSB, all local reports have been great! Gonna use it for a base station, might get another one to use in my truck, later down the road!

5/9

By Ryan V.

Best cb radio on the market!

Reads swr without calibration!

6/9

By Ian

Feature-rich CB

I’m new to CB radios set up was pretty simple. The radio itself is feature rich, a bright screen, and robust design...

7/9

By D. Turner

A nice full featured radio!

A nice, full featured radio. Seller was prompt on shipping and arrived timely. You can tell that the company that made this radio uses the radio. It was very easy to set up... Loaded with features and I'm very happy with this radio!

8/9

By Michael D.

Pres. George to Replace my McKinley

Bought the President George FCC to replace the McKinley in my Jeep Gladiator... All in all a great radio!!

9/9

By James F.

President George

...The president George is a great radio - i like all the features on it especially the weather alert - where i live in Tennessee you better have some kind of warning - the receive is excellent - speaker is great - i like how you can dim the lights on it - I also like the voltage meter and the built in SWR meter - lot of bells and whistles.
