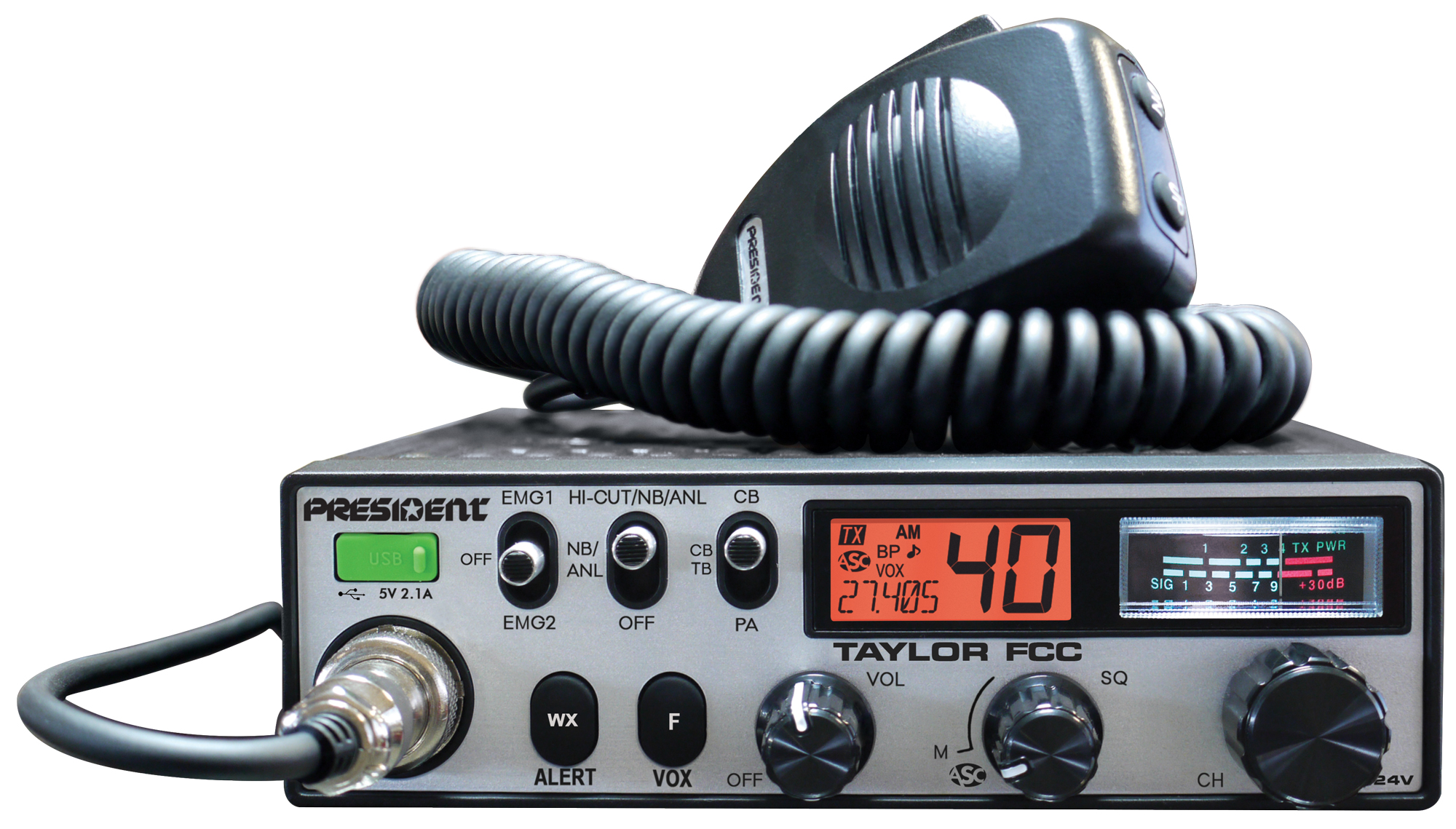

TAYLOR FCC - 12/24V

Send to a Friend

Ref.: TXUS403

- 40 channels AM
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S/RF vu-meter
- ANL filter , NB , HI-CUT
- F function key
- Beep Function
- EMG programmable
- Talkback
- VOX built in
- Automatic SWR meter
- Public Address
- Weather channel with Alert
- Front microphone plug
- External loudspeaker jack
- USB 5V 2.1A

Backlight color:

Minimum Advertised purchase price:

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Supply	:	13.8 V / 27.6 V
Number of channels	:	40
AM	:
Channel selector	:	rotary
Number of weather channels	:	7
Weather alert	:
Volume	:	Volume adjustment and ON/OFF
Squelch	:	Manual squelch
ASC	:
Display	:	LCD multifunction
Frequencies display	:
S-meter	:	vu-meter
Public address	:
Talkback	:
Vox	:
Automatic SWR meter	:
Filter ANL	:
Filter NB	:
Filter HI-CUT	:
Scan	:
Dimmer	:
F / Menu function key	:
Beep Function	:
Roger beep	:
SWR (Power Reading /SWR)	:
Preset channel	:	EMG 1 & 2
microphone plug	:	front (6 pins)
External Vox microphone jack	:
External loudspeaker jack	:
Size (W x D x H)	:	5.905 (W) x 6.496 (D) x 1.771 (H) inches 150 (W) x 165 (D) x 45 (H) mm
Weight	:	± 1.653 lbs / 0.750 kg

General

Number of channels	:	40
Number of weather channels	:	7
Weather alert	:
Modulation modes	:	AM
Frequency ranges	:	from 26.965 MHz to 27.405 MHz
Weather channels	:	from 162.400 MHz to 162.550 MHz
Antenna impedance	:	50 ohms
Power supply	:	13.8 V / 27.6 V
Size (W x D x H)	:	5.905 (W) x 6.496 (D) x 1.771 (H) inches 150 (W) x 165 (D) x 45 (H) mm
Weight	:	± 1.653 lbs / 0.750 kg
Accessories supplied	:	Ultra light electret microphone with support, mounting cradle, screws

Transmission

Frequency allowance	:	+/- 200 Hz
Carrier power	:	4 W
Transmission interference	:	inferior to 4 nW (- 54 dBm)
Audio response	:	300 Hz to 3 KHz
Emitted power in the adj. channel	:	inferior to 20 μW
Microphone sensitivity	:	3 mV
Drain	:	< 2 A @ 13.8 V / <1.5 A @ 27.6 V
Modulated signal distortion	:	2 %

Reception

Maxi. sensitivity at 20 dB sinad	:	0.5 μV - 113 dBm
Frequency response	:	300 Hz to 3 kHz
Adjacent channel selectivity	:	60 dB
Maximum audio power	:	3 W
Squelch sensitivity	:	minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm
Frequency image rejection rate	:	60 dB
Intermediate frequency rej. rate	:	70 dB
Drain	:	150 ~ 500 mA (13.8 V) 100 ~ 300 mA (27.6 V)
