BILL III FCC NEW

Ref.: TXUS201
Size : 4.02" (W) x 3.94" (D) x 0.98" (H) Power Supply : 12 V AM : FM : P CHANNELS : Channel Scan : Scan Skip : Filter ANL : Filter NB : Filter HI-CUT : NRC : Weather/Alert :


Our third version of the Bill is still the perfect size for small spaces, but now even better!  The Bill III is programmed with our NEW "P-Channels" which are five pre-configured memory channels set by President allowing targeted communications with other users.



Warranty: President radios are backed with a 2-year warranty. When purchased with an external President antenna, the radio warranty increases to 5 years under our 2+3 program.

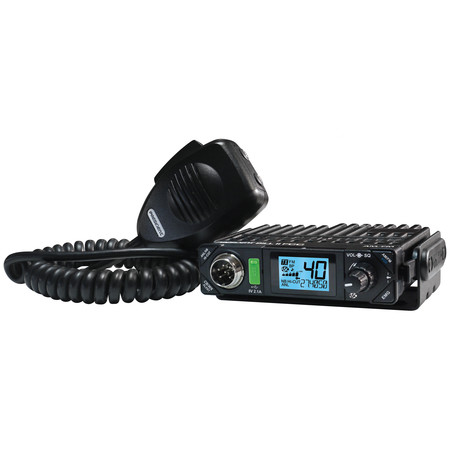

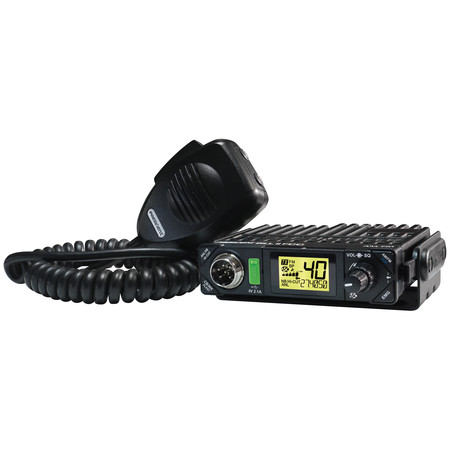

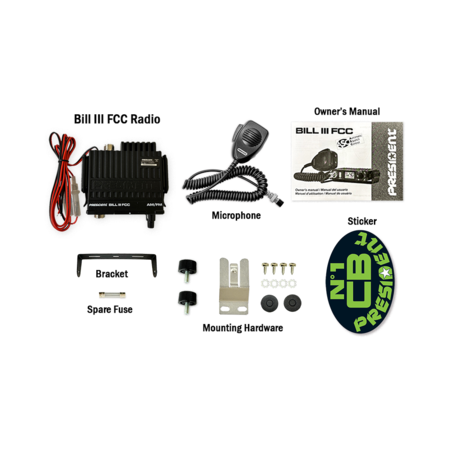

What's in the box: Transceiver, electret microphone with mounting cradle, quick fixation clip, screws and manual.

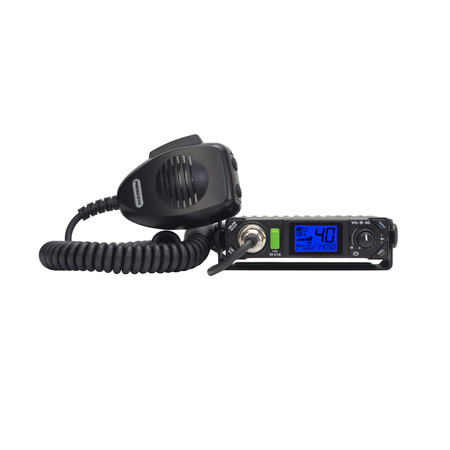

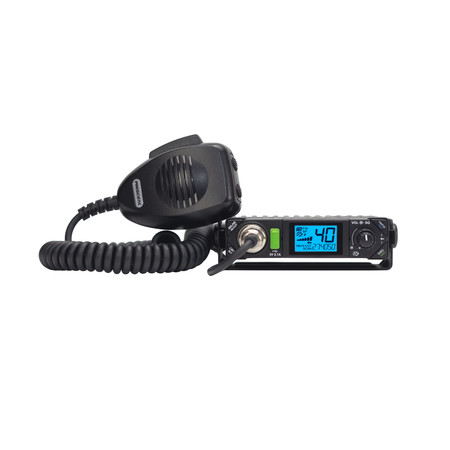

Backlight colors:

Features

: Size   4.02" (W) x 3.94" (D) x 0.98" (H)
: Weight   0.705 lbs
: Antenna socket   SO-239
: Antenna impedance   50 ohms
: Frequency ranges   from 26.965 MHz to 27.405 MHz
: Power supply (Input Voltage)   13.8 V
: Microphone plug   front (6 pins)
: Compatible microphone type   Electret , Dynamic
: External loudspeaker jack
: USB socket (front)   5 V / 2,1 A
: Display   LCD multifunction
: Channel display
: Frequencies display
: S-meter   Digital
: Modulation modes   AM / FM
: Volume adjustment and ON/OFF
: Squelch   Manual squelch
: Automatic Squelch Control (ASC)
: Channel selector   Up / down
: P CHANNELS
: Key Beep
: Roger beep
: Key locking
: Channel Shortcuts   2 , emergency channel (EMG) programmable
: Channel Scan
: Scan Skip
: Hands Free (Vox)
: TOT
: Filter ANL
: Filter NB
: Filter HI-CUT

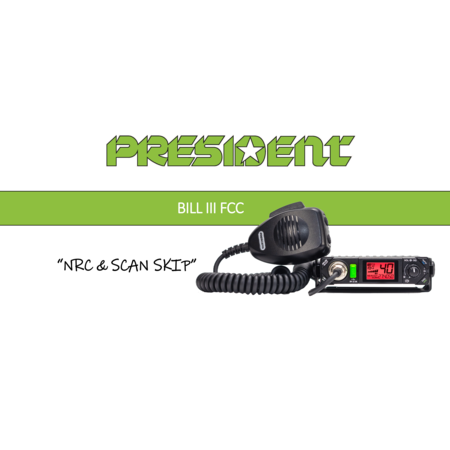

: NRC
: Weather channels   from 162.400 MHz to 162.550 MHz
: Weather/Alert
:Frequency allowance  ± 200 Hz
:Carrier power  4W AM/FM
:Transmission interference  < 4 nW (-54 dBm)
:Audio response   300 Hz to 3 kHz
:Emitted power in the adj. channel  < 20 μW
:Microphone sensitivity  5.5 mV (elec.) / 2.2 mV (dyn.)
:Drain  < than 2 Amp
:Modulated signal distortion  2%
:Max. sensitivity at 20 dB sinad  0.5 μV - 113 dBm (AM) / 0.35 μV - 116 dBm (FM)
:Frequency response  300 Hz to 3 kHz
:Adjacent channel selectivity  60 dB
:Maximum audio power  2,5 W
:Squelch sensitivity  min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate  60 dB
:Intermediate frequency rej. rate  70 dB
:Drain  150 ~ 700 mA
