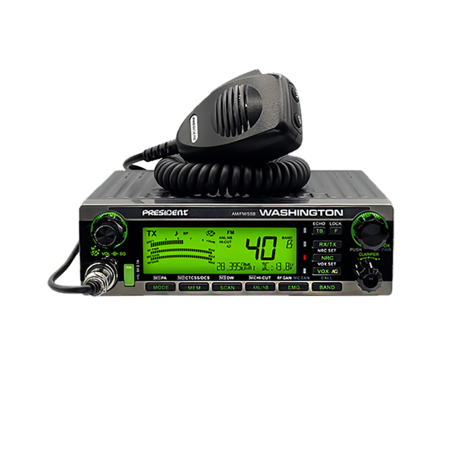

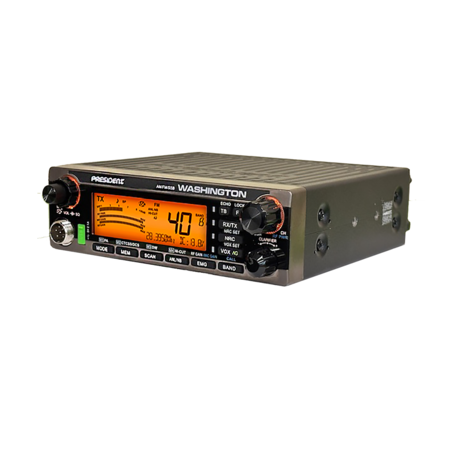

WASHINGTON

Send to a Friend

Ref.: TXUS902

Minimum Advertised purchase price:

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Supply	:	13.8 V
AM	:
FM	:
SSB	:
Channel selector	:	rotary
Volume	:	Volume adjustment and ON/OFF
RF Power	:
Squelch	:	Manual squelch
ASC	:

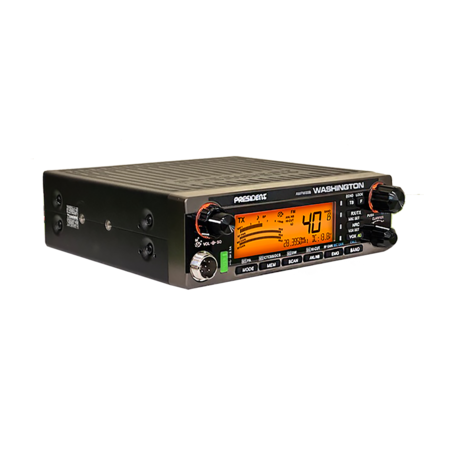

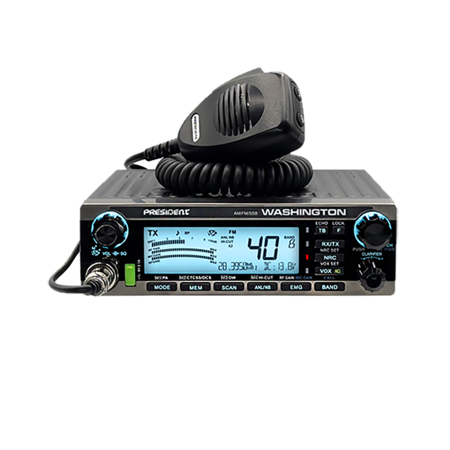

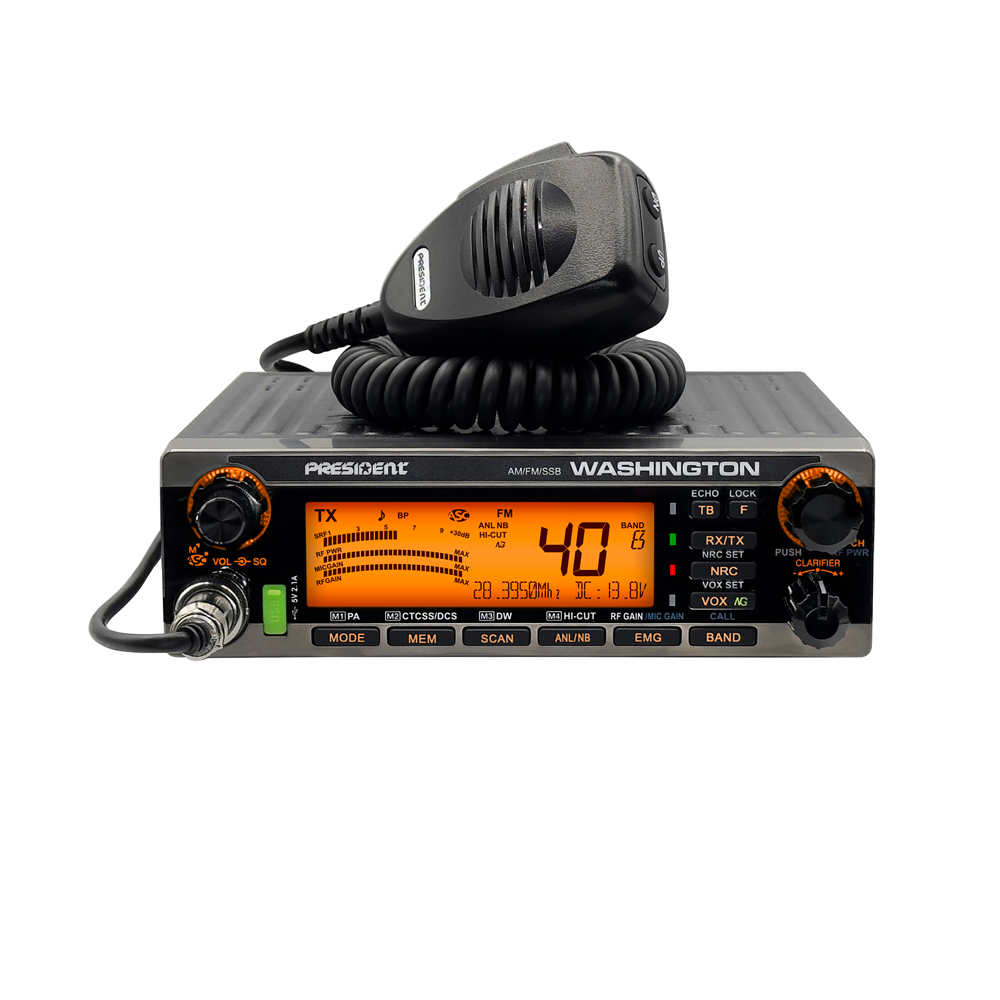

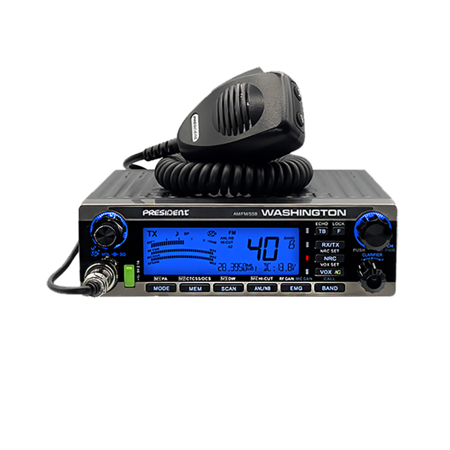

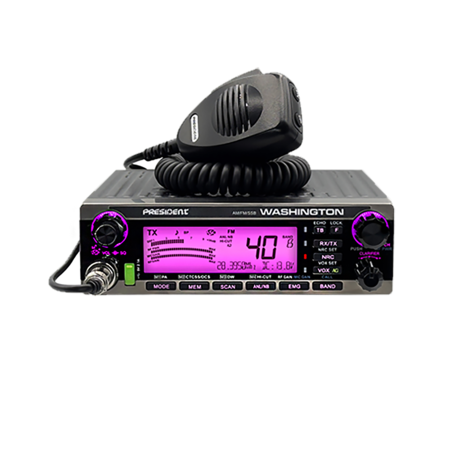

Display	:	LCD multifunction
Frequencies display	:
S-meter	:	Digital
Public address	:
Talkback	:
Vox	:
Automatic SWR meter	:
Tone	:
Filter ANL	:
Filter NB	:
Filter HI-CUT	:
NRC	:
Noise Gate	:
RF-Gain	:
Mike-Gain	:
Clarifier	:
Scan	:
Scan + Scan Skip	:
Memorie(s)	:	4
Dimmer	:
F / Menu function key	:
Beep Function	:
Roger beep	:
Dual watch	:
Key locking	:
SWR (Power Reading /SWR)	:
CTCSS	:
DSC	:
microphone plug	:	front (6 pins)
External Vox microphone jack	:
External loudspeaker jack	:
Size (W x D x H)	:	7.28 x 6.77 x 2.2 inches / 185 x 172 x 56 mm
Weight	:	~ 2.62 lbs / ~ 1.19 kg

General

Frequency ranges	:	28.000 MHz to 29.700 MHz / 24.890 MHz to 24.990 MHz
Antenna impedance	:	50 ohms
Power supply	:	13.8 V
Size (W x D x H)	:	7.28 x 6.77 x 2.2 inches / 185 x 172 x 56 mm
Weight	:	~ 2.62 lbs / ~ 1.19 kg

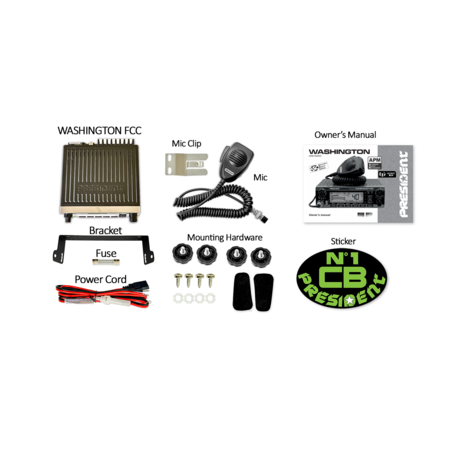

Accessories supplied	:	power cord with fuse, 1 microphone and its hanger, 1 mounting bracket with fixing screws

Transmission

Frequency allowance	:	+/- 200 Hz
Carrier power	:	70 W PEP (AM/USB/LSB) / 50 W (FM)
Transmission interference	:	< 4 nW (- 54 dBm)
Audio response	:	300 Hz to 3 KHz
Emitted power in the adj. channel	:	< 20 μW
Microphone sensitivity	:	3 mV
Drain	:	< 12 A (with modulation)
Modulated signal distortion	:	2%

Reception

Maxi. sensitivity at 20 dB sinad	:	0.7 µV - 110 dBm (AM) / 0.35 µV - 116 dBm (FM) / 0.28 µV - 118 dBm (USB/LSB/CW)
Frequency response	:	300 Hz to 3 KHz
Adjacent channel selectivity	:	60 dB
Maximum audio power	:	3 W
Squelch sensitivity	:	min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate	:	60 dB
Intermediate frequency rej. rate	:	70 dB
Drain	:	400 mA nominal / 600 mA max.
